Sleeve sensor / cable temperature sensor THERMASGARD® HTF50 NiTK PVC 1.5M
THERMASGARD® HTF50 NiTK PVC 1.5M
SKU 1101-6031-0211-110
EAN 4 251325 604909
Product group: WG03B
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
22,42 €
Regular price
Sale price
22,42 €
Consegna in 2 giorni in Italia
Garanzia di 5 anni
Richiedi uno sconto quantità
Product description
- Insertion depth: 50 mm
- passive
- -35...+105 °C
- KL = 1.5 m
- LiYY (PVC)
The THERMASGARD® HTF sleeve sensor/cable sensor is used to measure temperatures in liquid and gaseous media. It can be used as a duct sensor as well as an immersion and screw-in sensor by installing it in a thermowell.

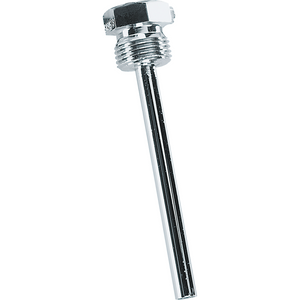

The sleeve length varies as required from 30...400 mm (standard is 50 mm or 200 mm), the cable length is freely selectable (standard is 1.5 m). Depending on the application, with silicone, glass silk or PVC cable, as a two or four-wire connection. For direct, permanent use in liquids, please use our immersion sleeves THE (see type table).
The sleeve length varies as required from 30...400 mm (standard is 50 mm or 200 mm), the cable length is freely selectable (standard is 1.5 m). Depending on the application, with silicone, glass silk or PVC cable, as a two or four-wire connection. For direct, permanent use in liquids, please use our immersion sleeves THE (see type table).
Technical data
| Sensor | NI1000TK5000 |
| Function type | Measurement Temperature |
| Measured variables | Temperature, passive temperature |
| Mounting dimensions metric / mm | 50 mm |
| Cable length | 1.5 m |
| Display | No |
| Protection rating | IP65 |
| Output variant | Cable with wire end ferrules |
| Measuring range | -35...+105 °C |
| Cable material | LiYY (PVC) |
