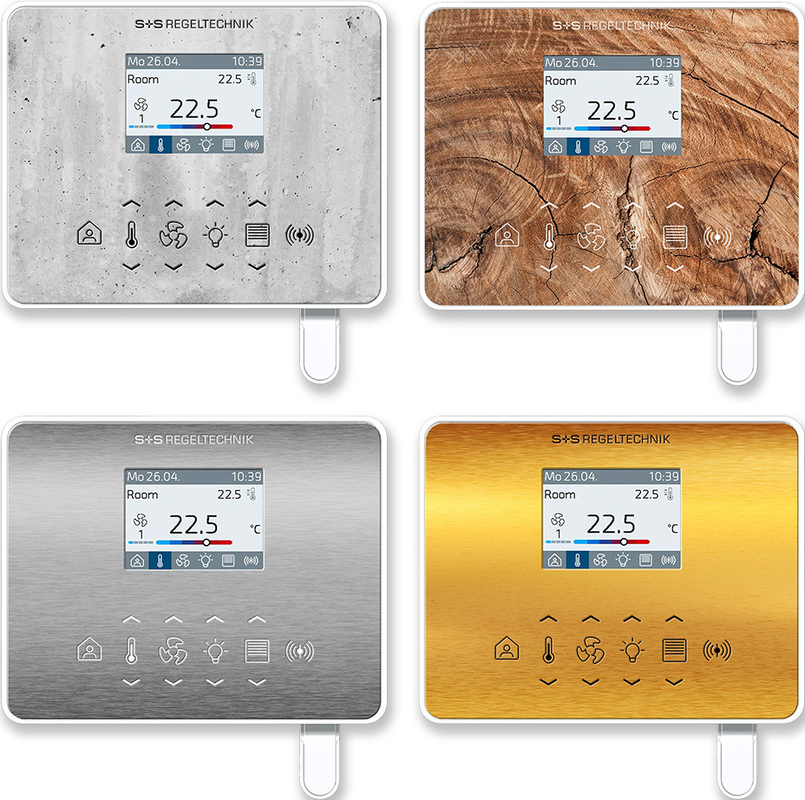

WIRELESS room controller (controller) RYMASKON® RYM 1461C-RH-CO2-WMOD-BB

The room operating devices of the Rymaskon® 1000 series are designed for controlling (up to 2 climate zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family is distinguished by its refined design, intuitive operation, and the many combination options of the individual components.
The room operating devices Rymaskon® 1000 C (controllers) are used for controlling and regulating heating fan convectors and fan convectors (fancoils). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, stepped fan stages, or EC fan stages. Control is performed via PI, PWM, or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the configuration and monitoring of climate parameters on the controller at any time via the building management system (BMS). In addition, the functions solar shading (roller shutters, louvers) or lighting (with dimming function) can be controlled via the bus. The optical display is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available optionally. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation monitor. As a result, all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mount junction boxes.
