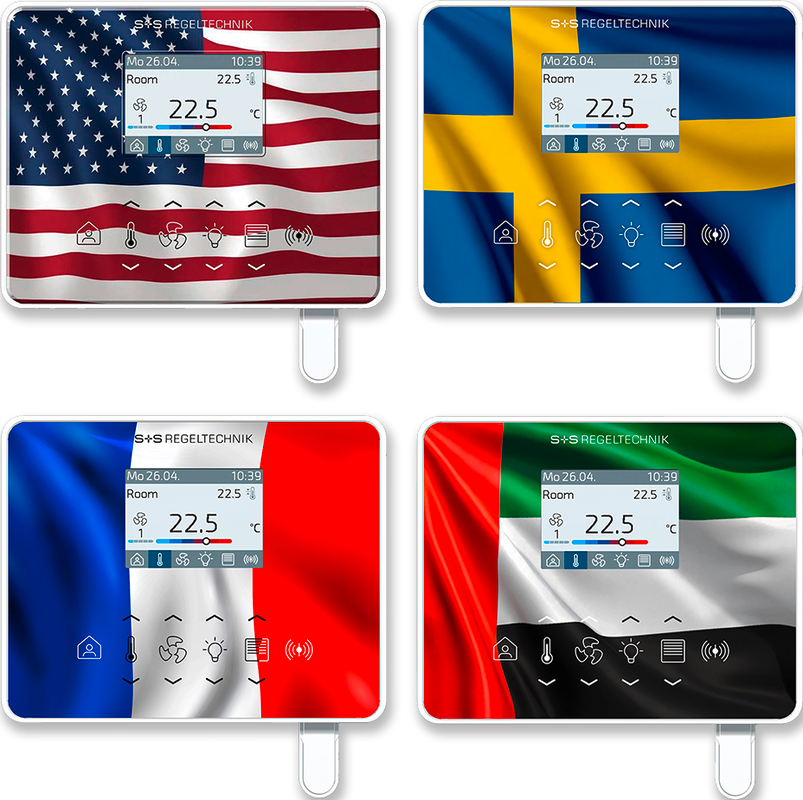

WIRELESS room operating unit (interface) RYMASKON® RYM 1402-RH-WMOD-AP

The room controllers of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office premises, and individually regulate the indoor heating, cooling, and fan stages. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation, and the many combination options of the individual components.

The Rymaskon® 1000 room controllers (interface) are used to control temperature, ventilation, solar protection (retractable awnings, shutters) or lighting (with dimming function). The room controllers provide setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus from building management systems (GLT). Visual indication is provided via a 2" TFT display; operation is via capacitive keys (touch keys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This allows, for example, a window contact or a condensation alarm to be connected. This ensures that all options are available to flexibly and individually condition rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mounted back boxes or surface-mounted installations.
