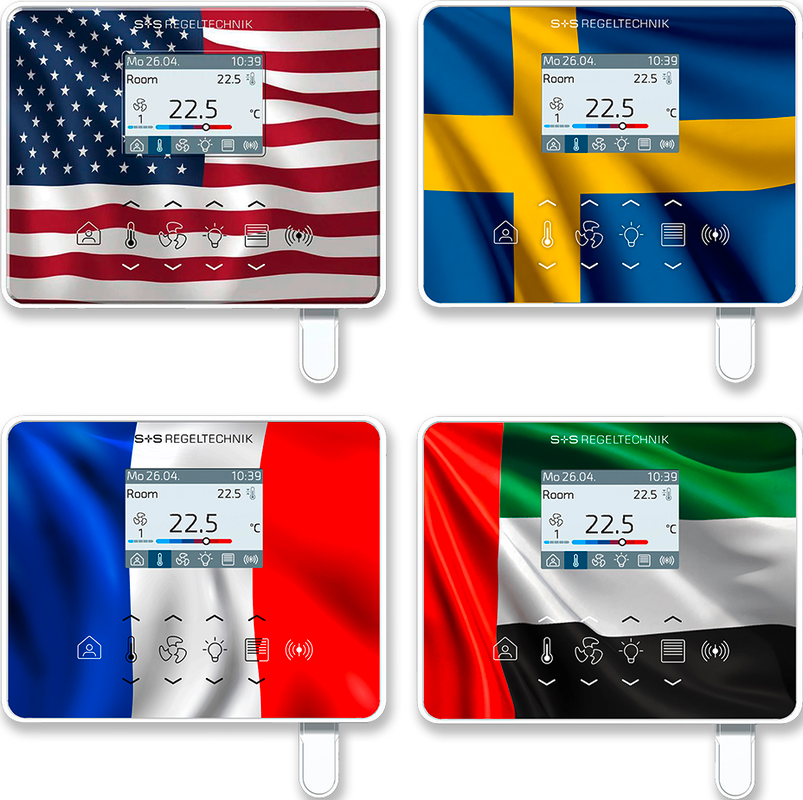

WIRELESS room operating unit (interface) RYMASKON® RYM 1402-RH-CO2-VOC-WMOD-AP

The room control units of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and fan stages of the interior. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family is distinguished by its refined design, intuitive operation, and the diverse combination possibilities of the individual components.

The room control units Rymaskon® 1000 (interface) are used to control temperature, fan, solar protection (roller shutters, blinds), or lighting (with dimming function). The room control units provide the setpoints either via conventional wired Modbus or via the wireless, radio-based W-Modbus of the BMS/GLT. The optical indication is provided by a 2" TFT display, and operation is via capacitive keys (Touchkeys).
In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mount boxes or surface-mount boxes.
