Room operating unit (interface) RYMASKON® RYM 1402-RH-CO2-VOC-MOD-LL

The room controller devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms, and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.

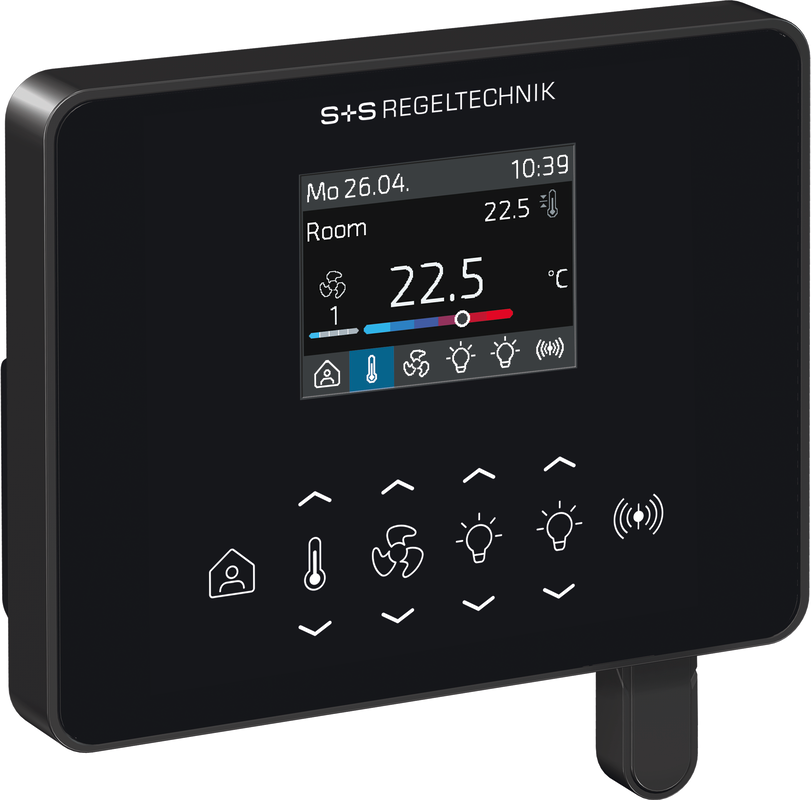

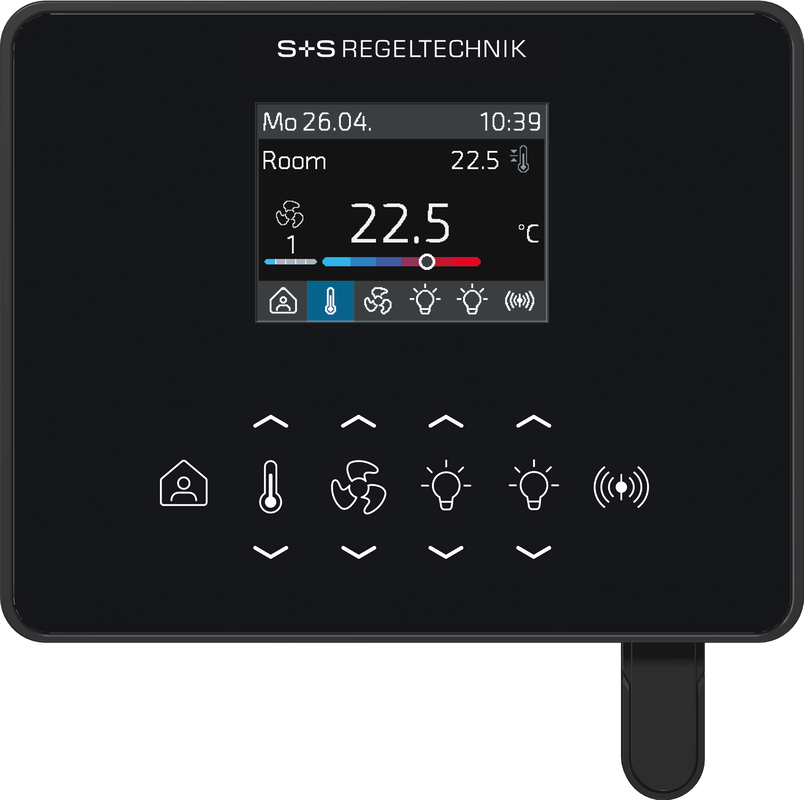

The room controller devices Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (roller shutters, blinds) or light (with dimming function). The room controller devices provide setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS. Visual indication is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).

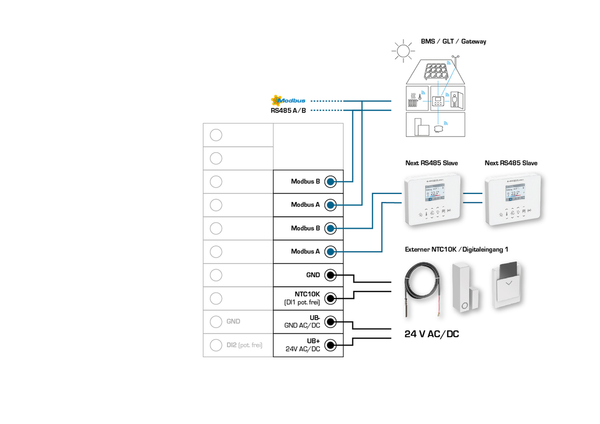

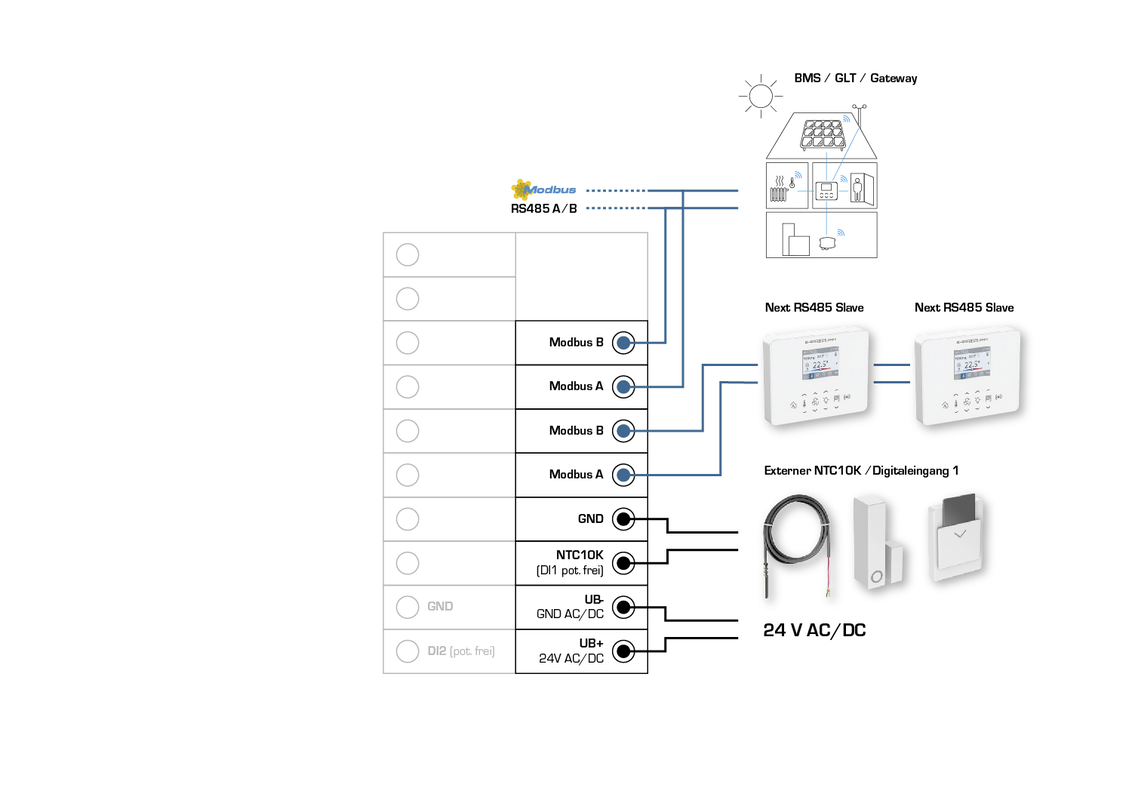

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation alarm. This provides all options to flexibly and individually condition rooms.

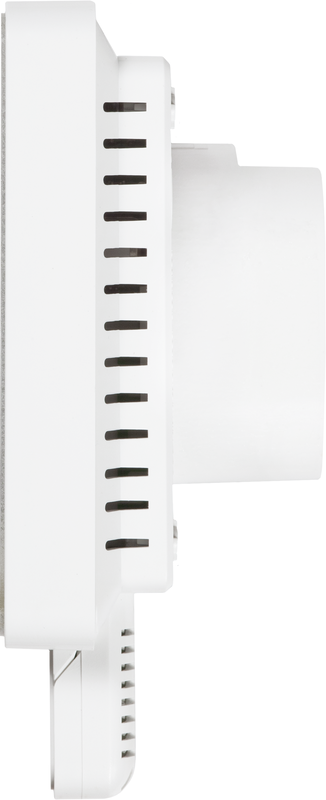

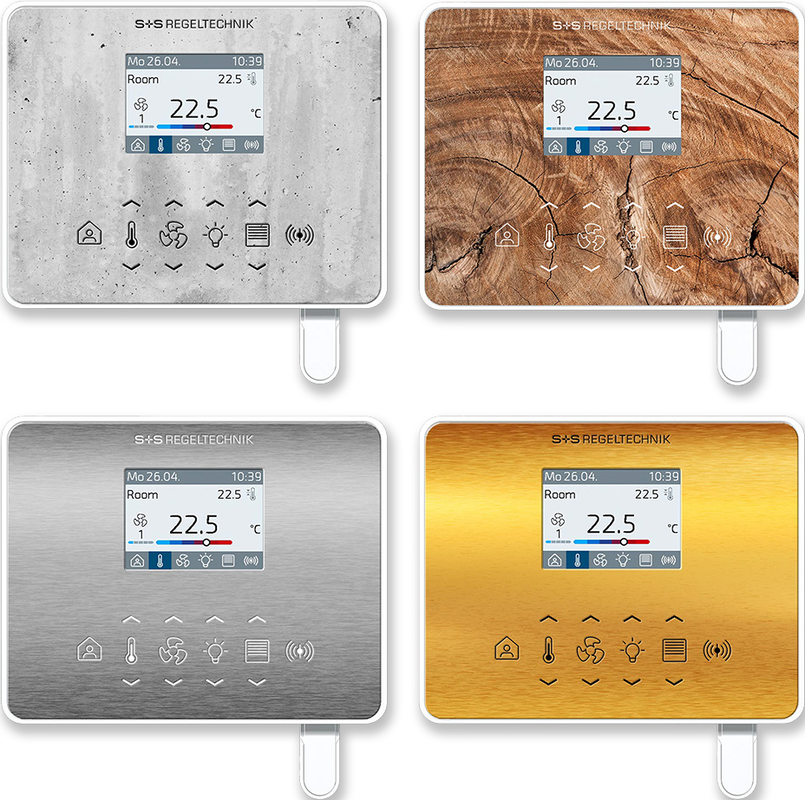

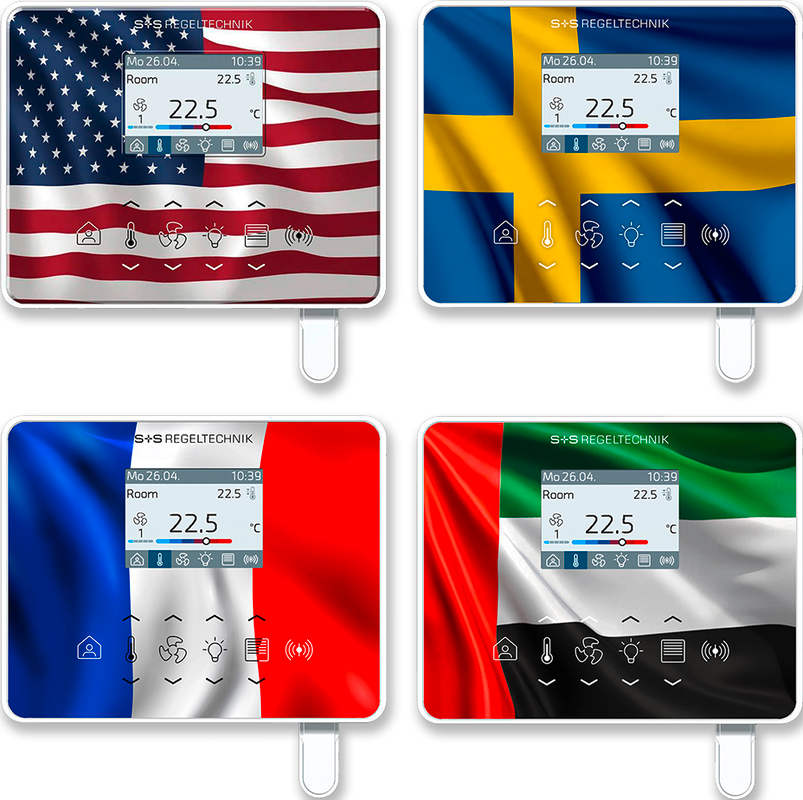

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in white or black. Wall mounting can be done on standard flush-mounting boxes or surface mounting.
