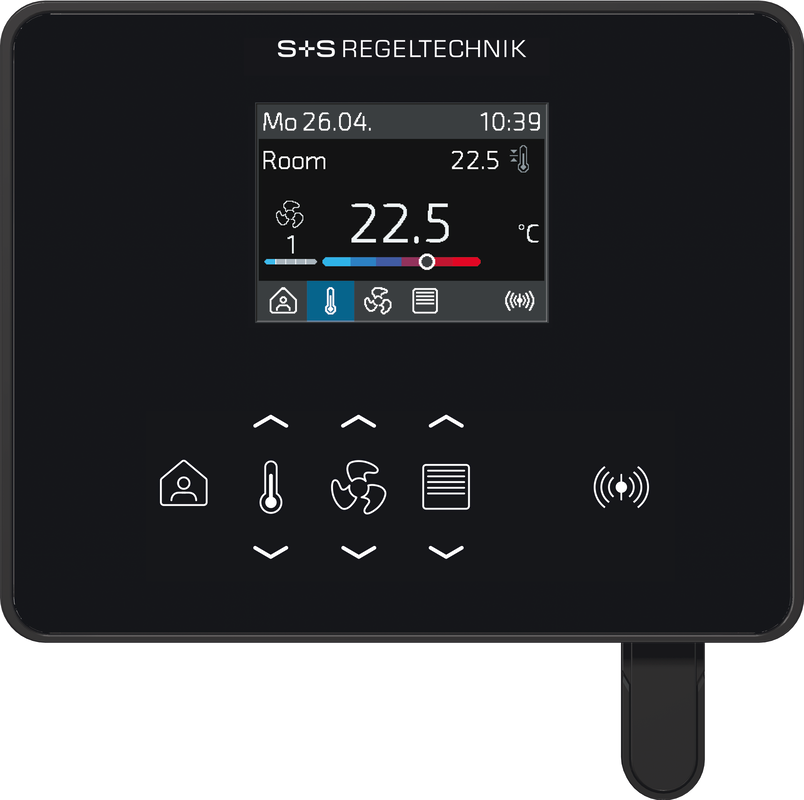

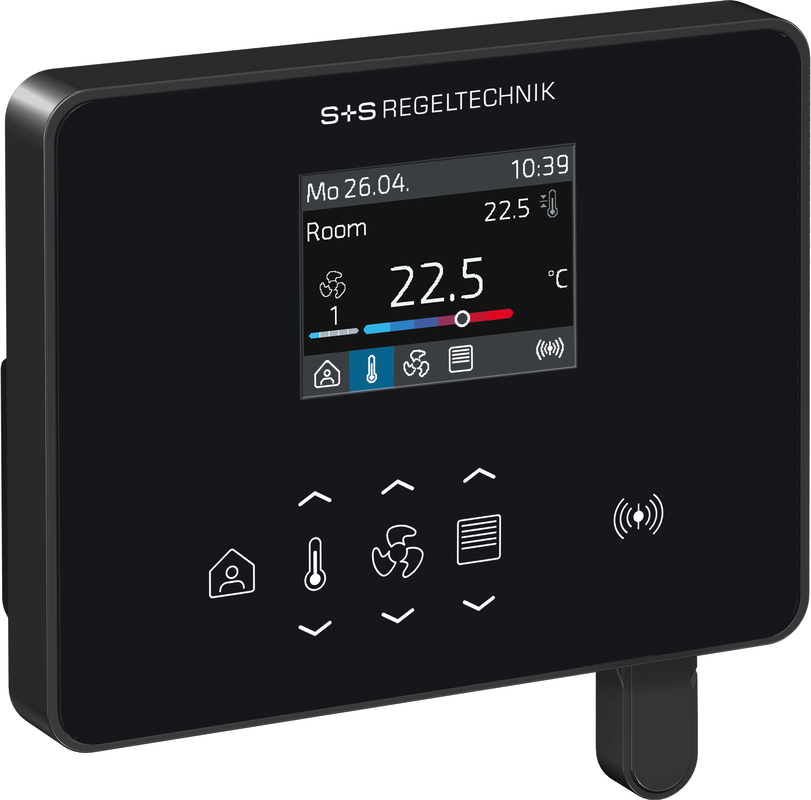

Room operating unit (interface) RYMASKON® RYM 1402-RH-CO2-VOC-MOD-B

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the wide range of combination options of the individual components.

The room control devices Rymaskon® 1000 (interface) are used to control temperature, fan, sun protection (roller shutters, blinds) or lighting (with dimming function). The room control devices provide setpoints either via conventional wired Modbus or via the wireless, radio-based W-Modbus from BMS. The optical indication is provided by a 2" TFT display, and operation is via capacitive buttons (Touchkeys).

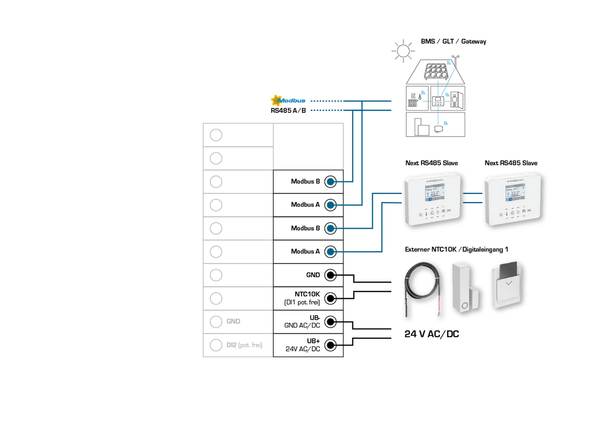

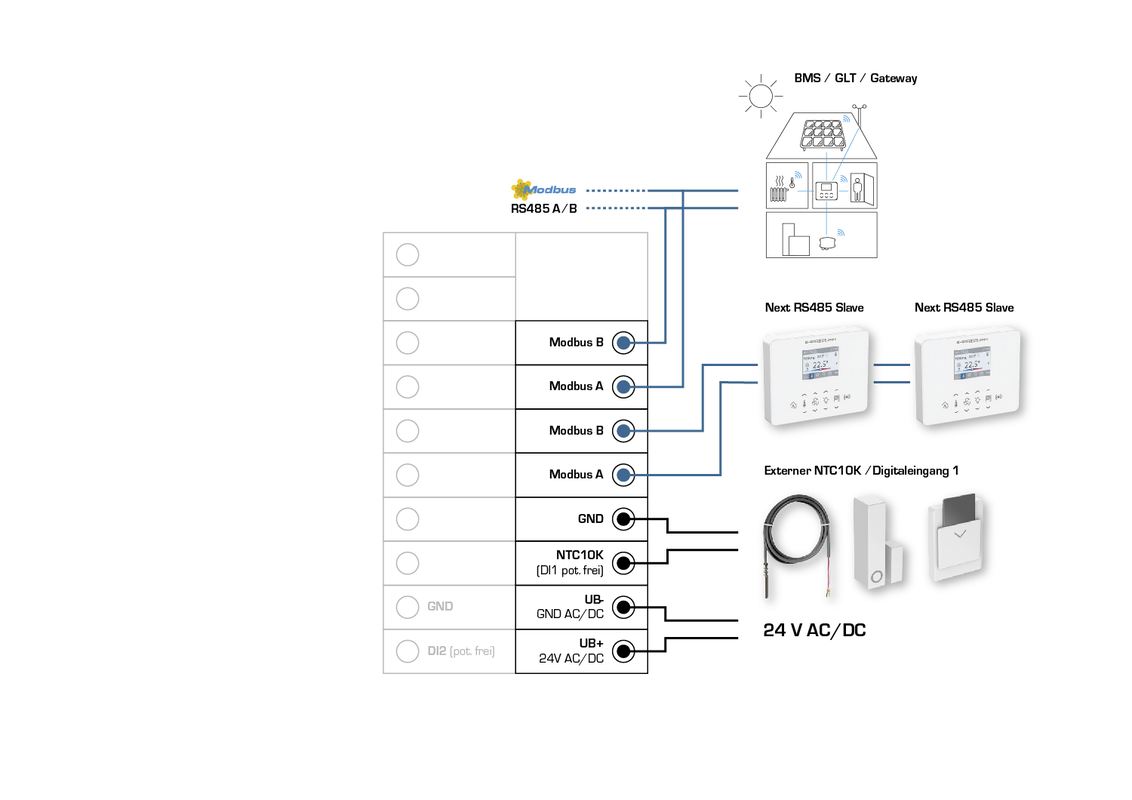

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input is available for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This allows, for example, a window contact or a condensation guard to be connected. This ensures that all options are available to flexibly and individually condition rooms.

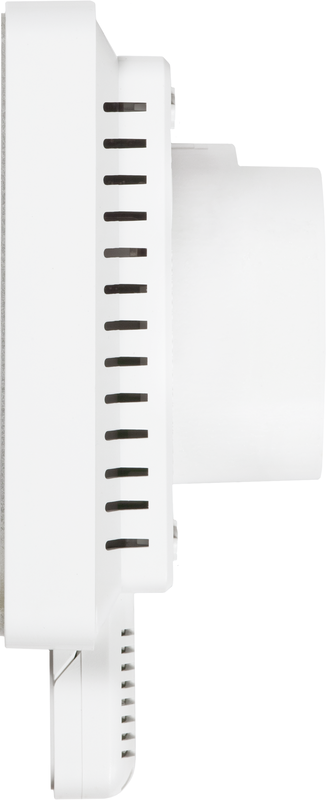

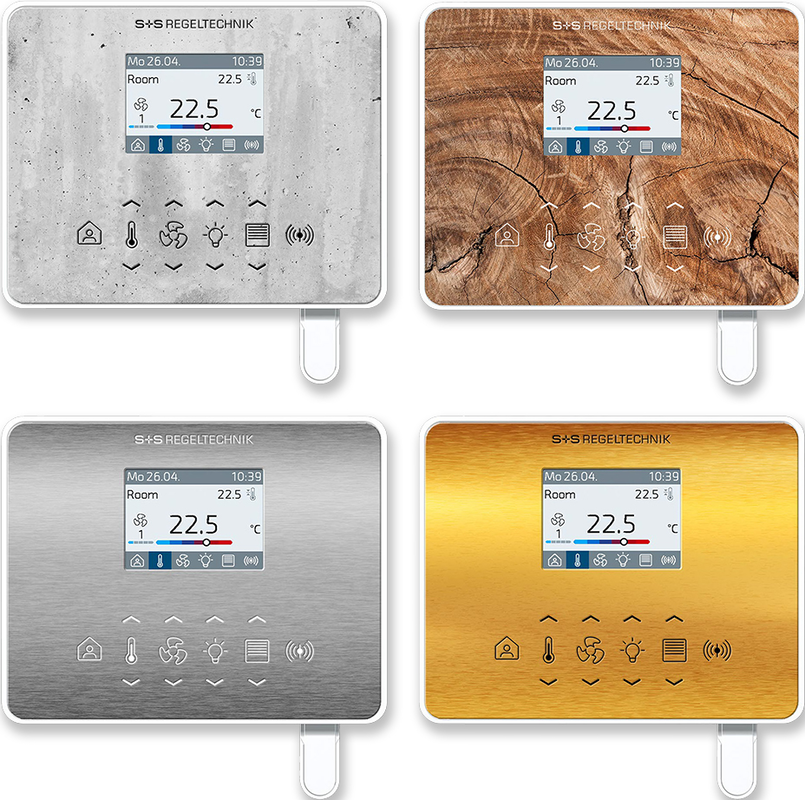

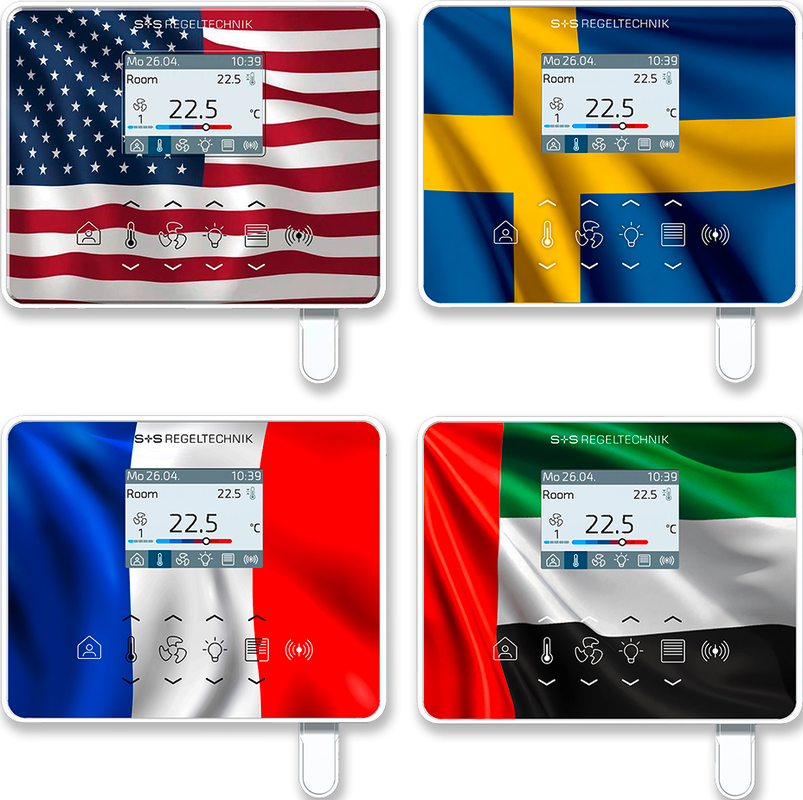

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mounted boxes or surface-mounted.
