Room operating unit (interface) RYMASKON® RYM 1402-RH-CO2-VOC-MOD-AP-LL

The room controllers of the series Rymaskon® 1000 are designed to control (up to 2 zones) living, hotel and office rooms and individually regulate the indoor heating, cooling and fan stages. The controller variants can be operated as stand-alone devices thanks to the integrated control functions PI, PWM or 2-/3-point control. The product family stands out for its elegant design, intuitive operation and the diverse combination options of the individual components.

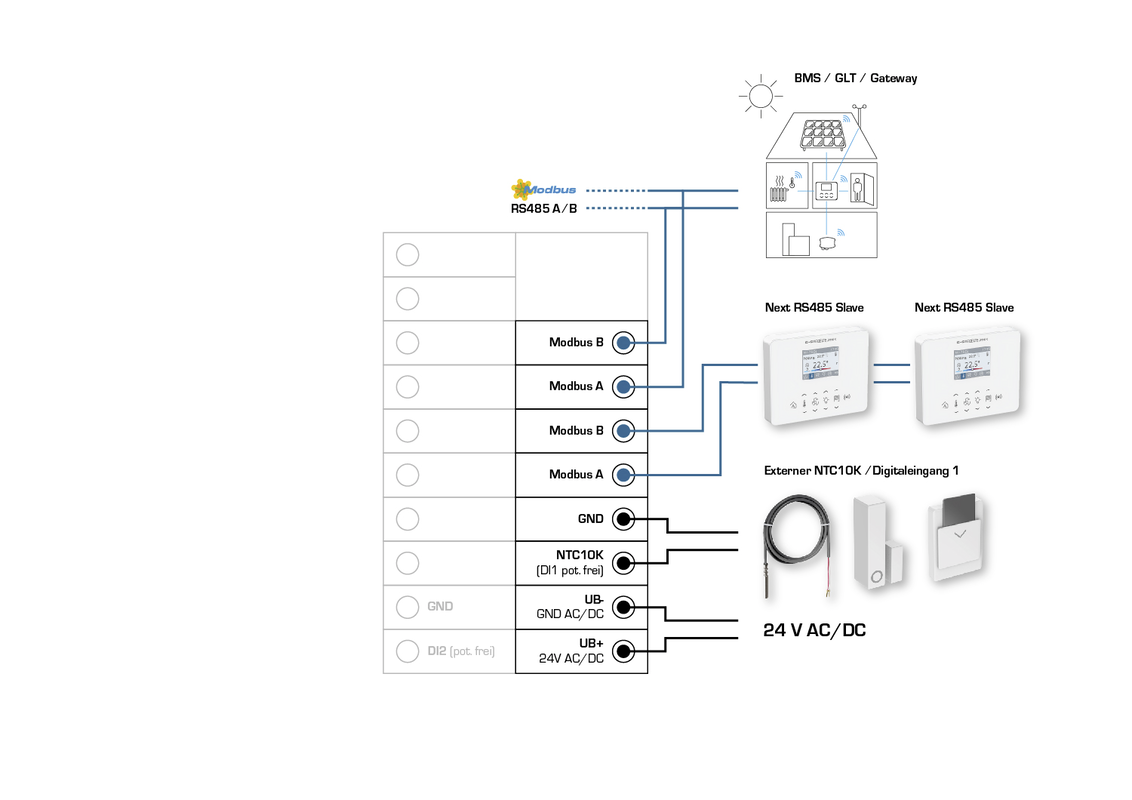

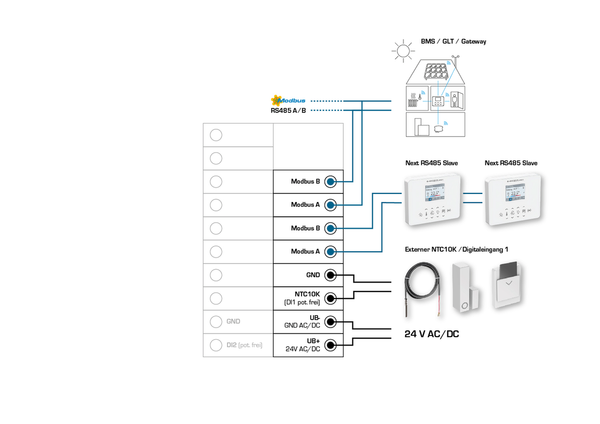

The room controllers Rymaskon® 1000 (interface) are used to control temperature, ventilation, solar protection (roller shutters, blinds) or lighting (with dimming function). The room controllers provide the setpoints either via conventional wired Modbus or via the wireless, radio-based W-Modbus of building management systems (BMS). The optical display is provided by a 2" TFT display, and operation is via capacitive keys (Touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation monitor. As a result, all options are available to flexibly and individually condition rooms.

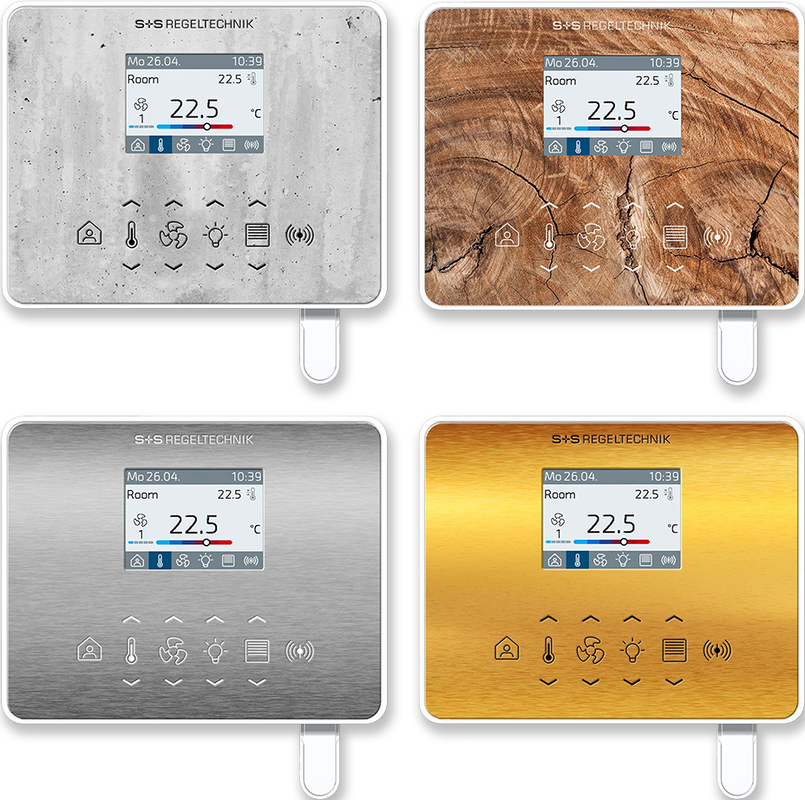

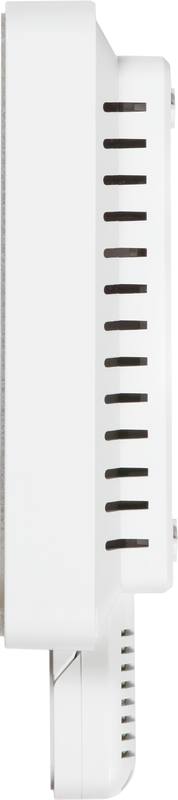

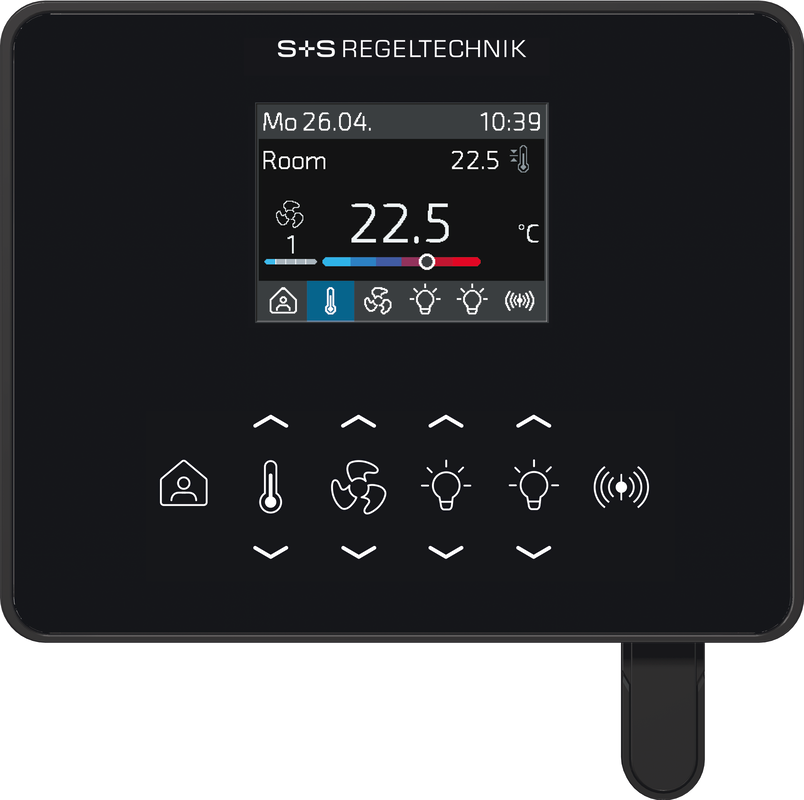

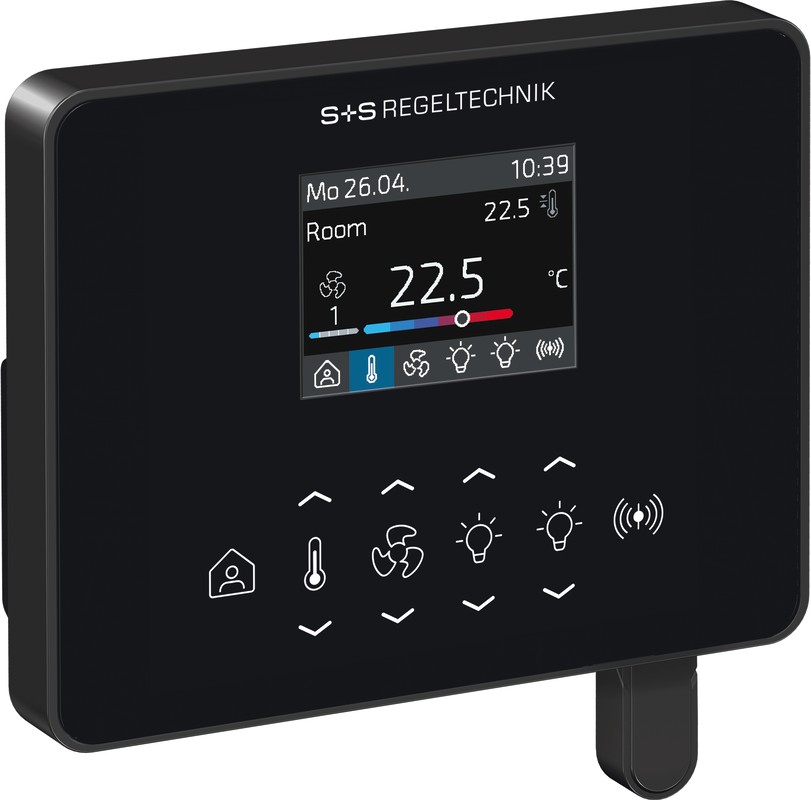

All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in white or black. Wall mounting is possible on standard flush-mount boxes or surface-mount boxes.
