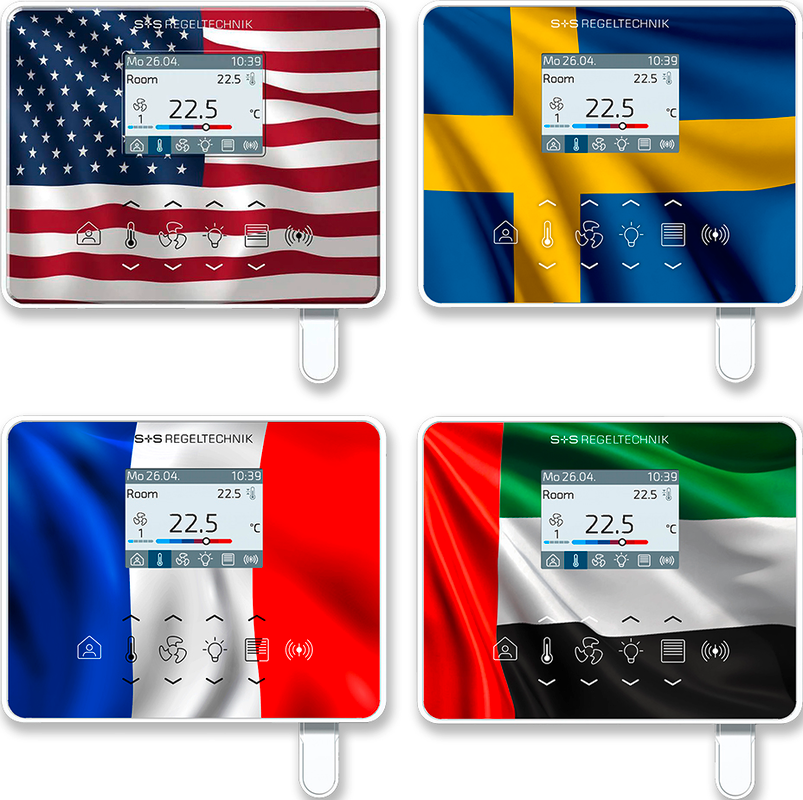

WIRELESS room operating unit (interface) RYMASKON® RYM 1302-RH-CO2-VOC-WMOD-AP-L

The room controller units of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and ventilation stages of the interior. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its refined design, intuitive operation and the many combination options of the individual components.

The room controller units Rymaskon® 1000 (interface) are used for controlling temperature, ventilation, solar protection (roller shutters, blinds) or lighting (with dimming function). The room controller units provide the setpoints either via conventional wired Modbus or via the wireless, radio-based W-Modbus of the building management system (GLT). The optical display is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).
In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are optionally available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation monitor. As a result, all options are available to flexibly and individually condition rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in white or black. Wall mounting is possible on standard flush-mounted boxes or surface-mounted.
