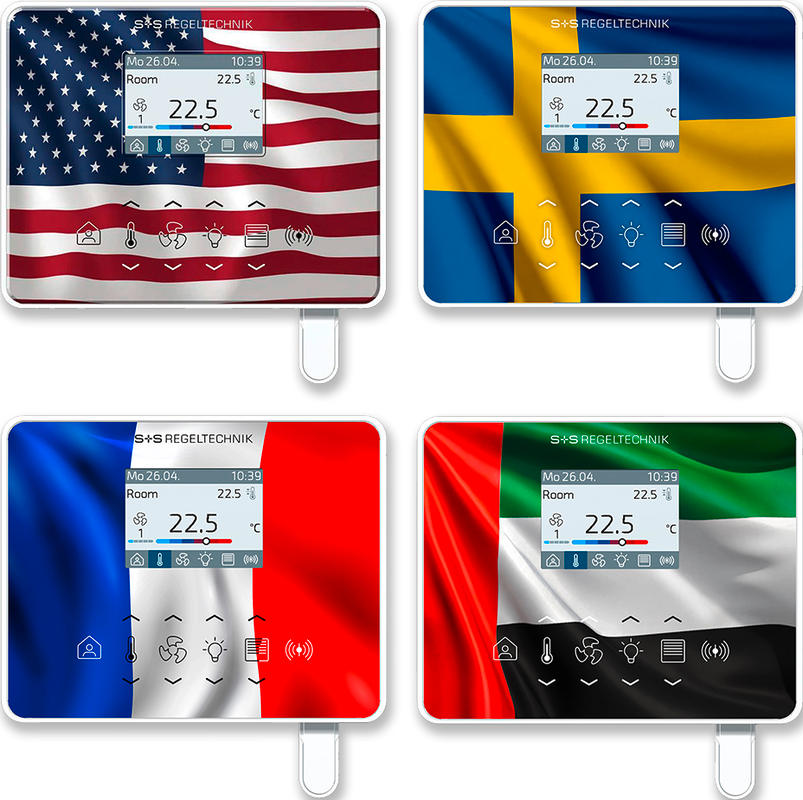

WIRELESS room operating unit (interface) RYMASKON® RYM 1302-RH-CO2-VOC-WMOD-AP-B

The room controller devices of the Rymaskon 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms, and individually regulate the indoor heating, cooling and fan stages. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its refined design, intuitive operation and the wide range of combination options of the individual components.

The room controller devices Rymaskon 1000 (interface) are used for controlling temperature, fan, solar shading (roller shutters, blinds) or lighting (with dimming function). The room controller devices provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS/GLT. The optical display is implemented via a 2" TFT display, and operation is via capacitive keys (Touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This allows, for example, a window contact or a condensation monitor to be connected. This means all options are available to climate-control rooms flexibly and individually.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is either on standard flush-mount boxes or surface-mount.
