WIRELESS room operating unit (interface) RYMASKON® RYM 1301-RH-CO2-VOC-WMOD-L

The room controller devices of the Rymaskon® 1000 series are designed for controlling (up to 2 climate zones) in residential, hotel and office rooms and individually regulate the indoor heating, cooling and fan stages. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation and the many combination options of the individual components.

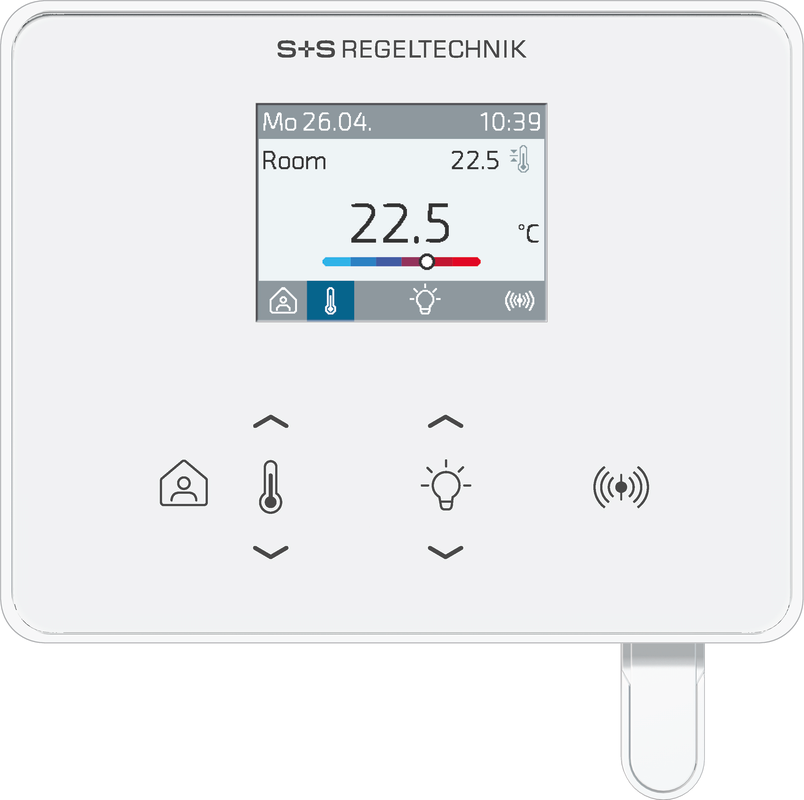

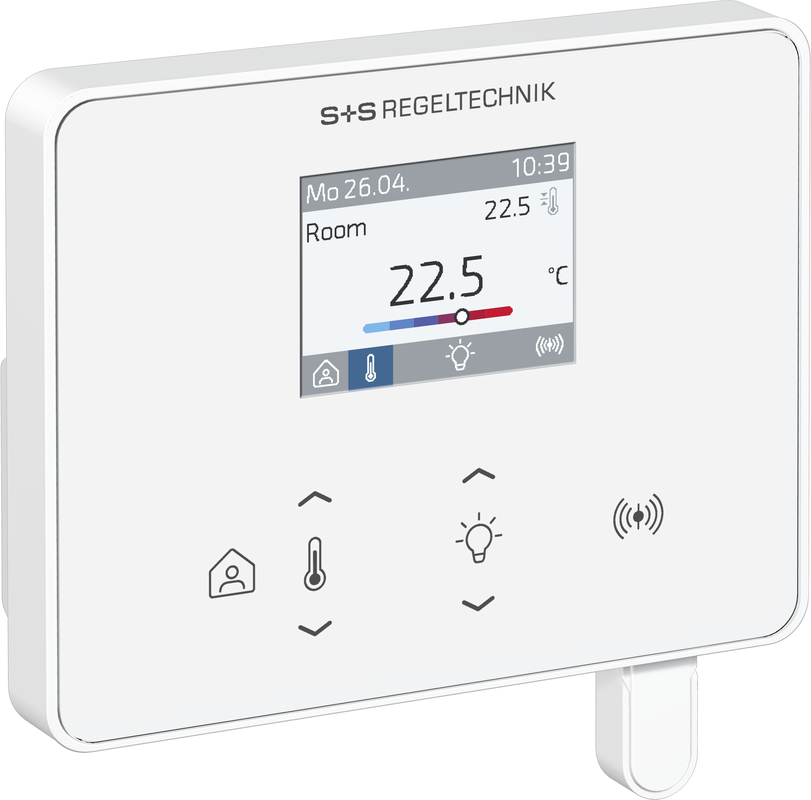

The room controller devices Rymaskon® 1000 (Interface) are used to control temperature, fan, sun protection (roller shutters, blinds) or lighting (with dimming function). The room controller devices provide setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus from the BMS/GLT. Visual indication is provided by a 2" TFT display; operation is via capacitive keys (Touchkeys).

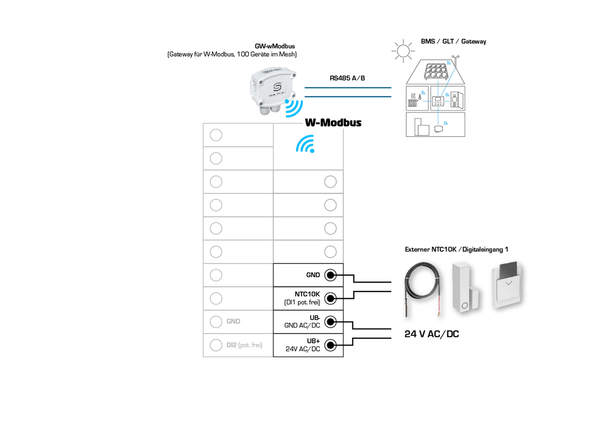

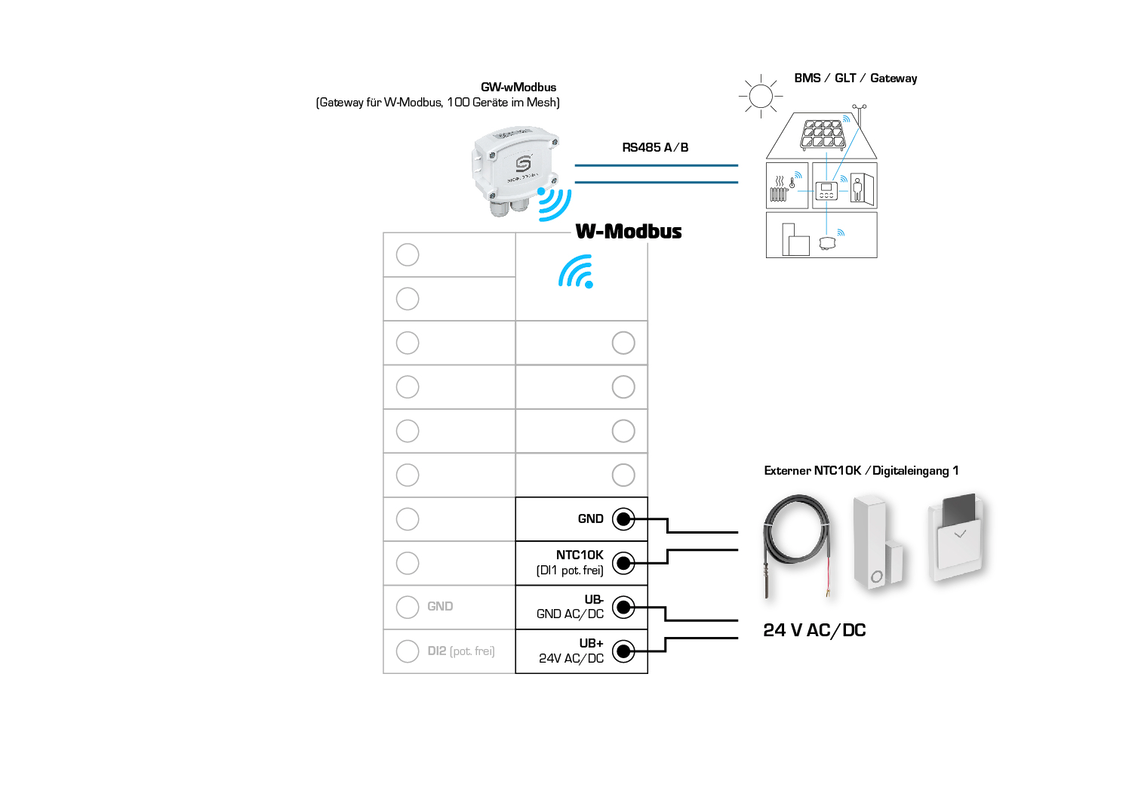

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This enables, for example, a window contact or a condensation monitor to be connected. This ensures that all options are available for flexibly and individually climate-controlling the rooms.

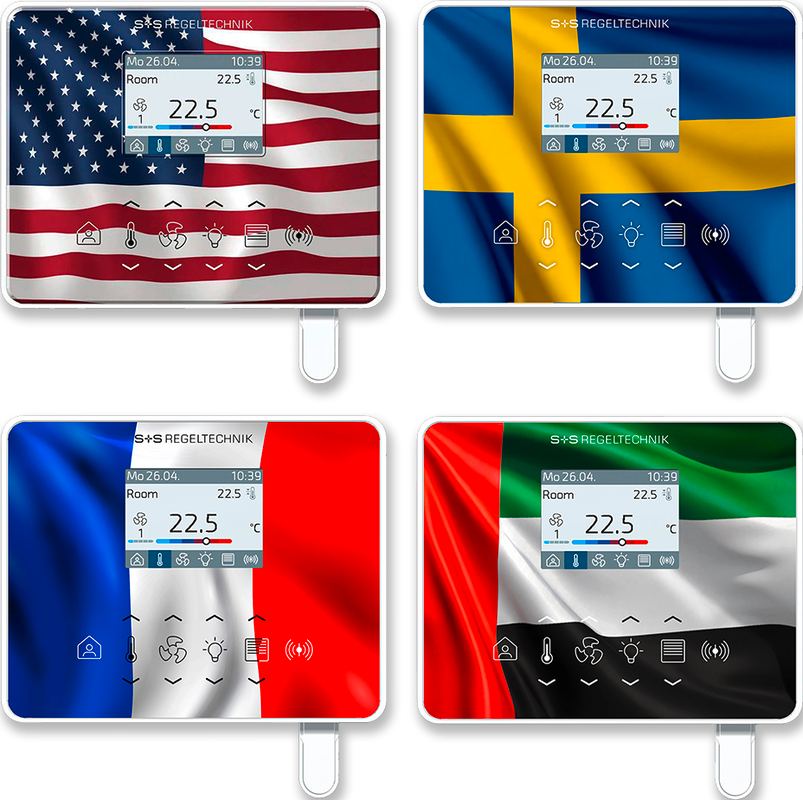

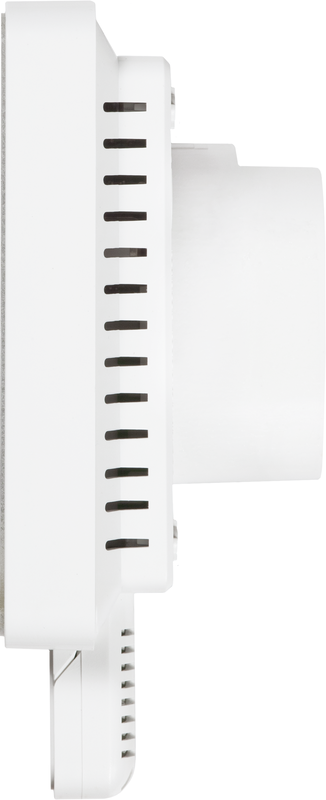

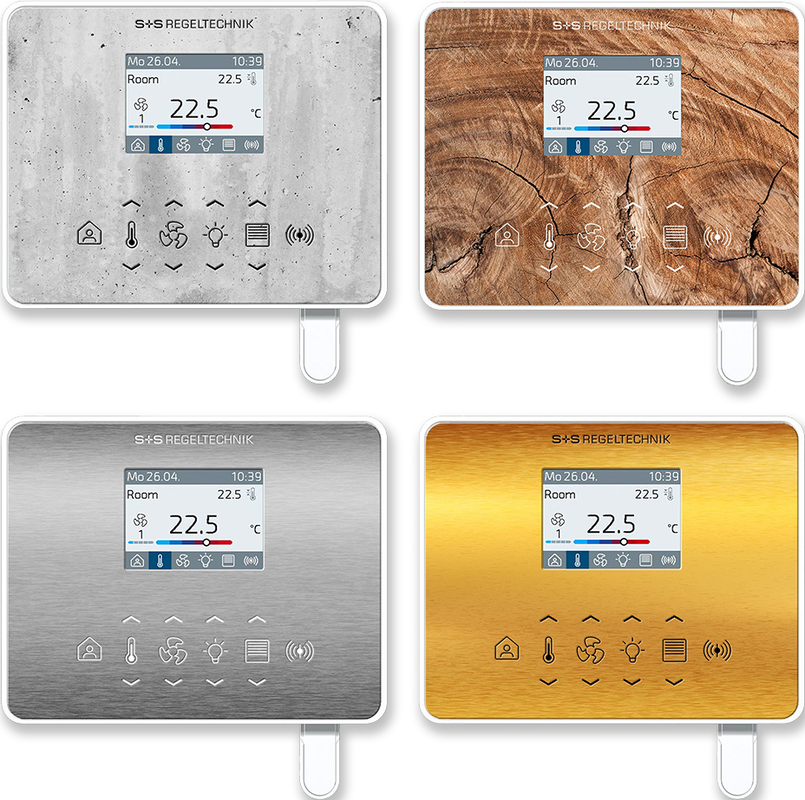

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mounted back boxes or surface-mounted boxes.
