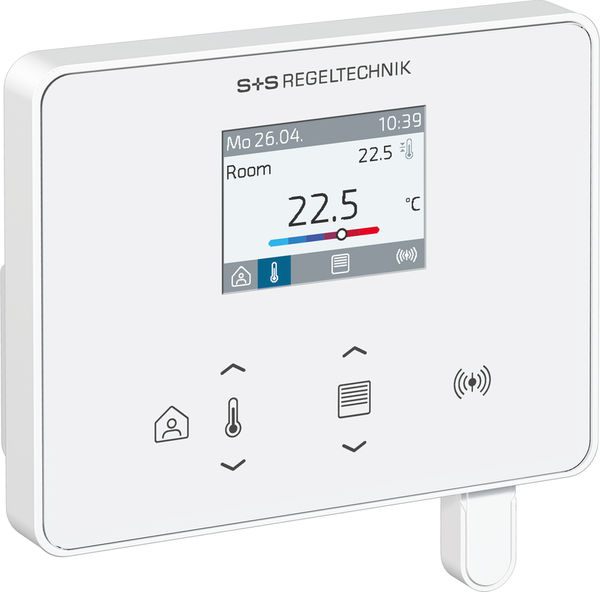

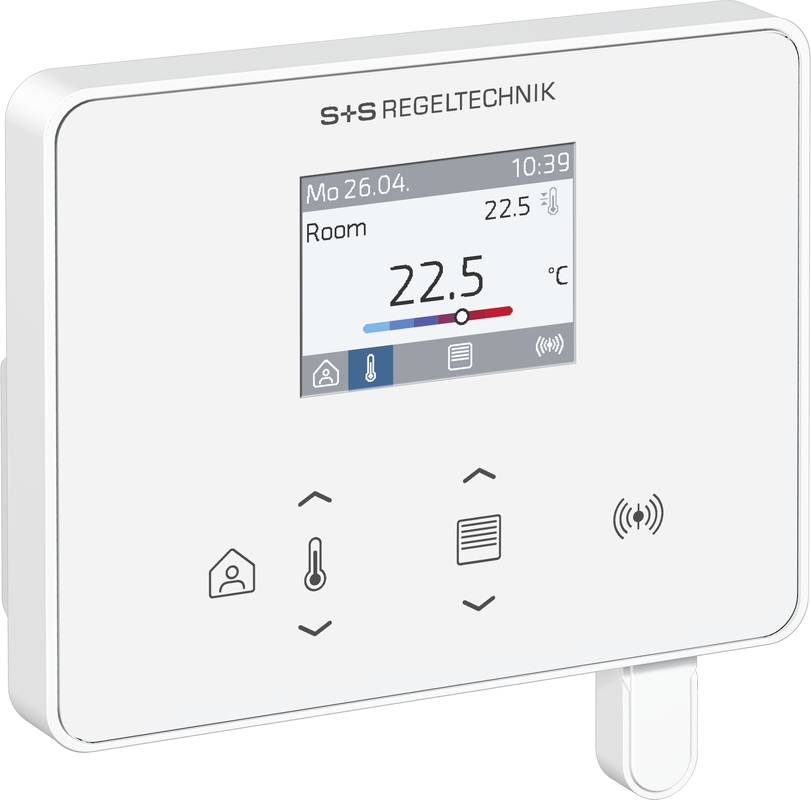

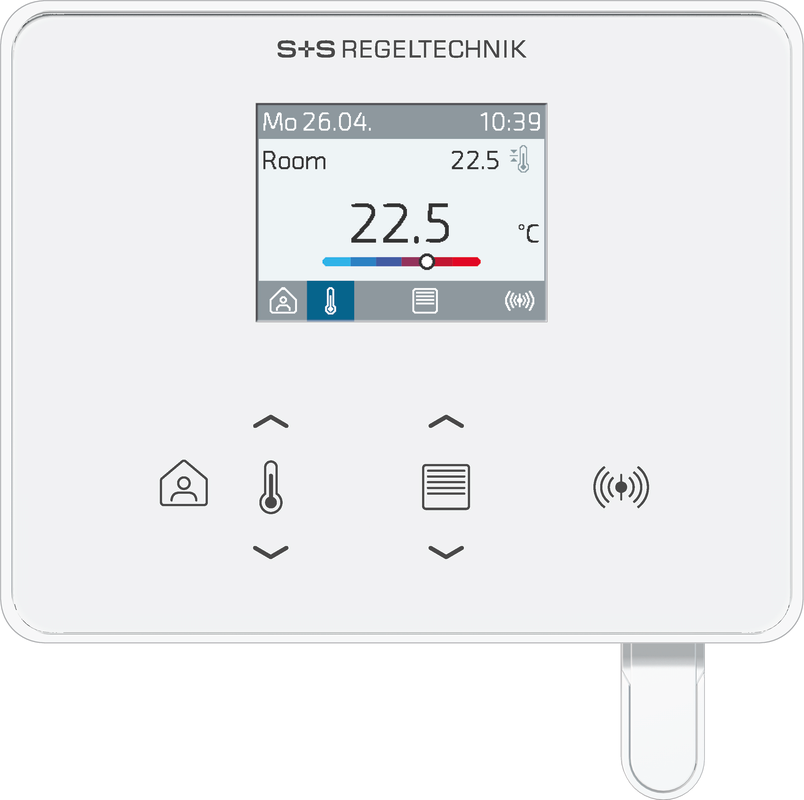

Room operating unit (interface) RYMASKON® RYM 1301-RH-CO2-VOC-MOD-B

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) living, hotel, and office areas, and they individually regulate the indoor heating, cooling, and fan stages. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM, or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation, and the versatile combination options of the individual components.

The room control devices Rymaskon® 1000 (interface) are used to control temperature, ventilation, solar shading (roller shutters, blinds), or lighting (with dimming function). The room control devices provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of building management systems. The optical display is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).
In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input is available for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This allows, for example, a window contact or a condensation monitor to be connected. As a result, all options are available to flexibly and individually condition rooms.

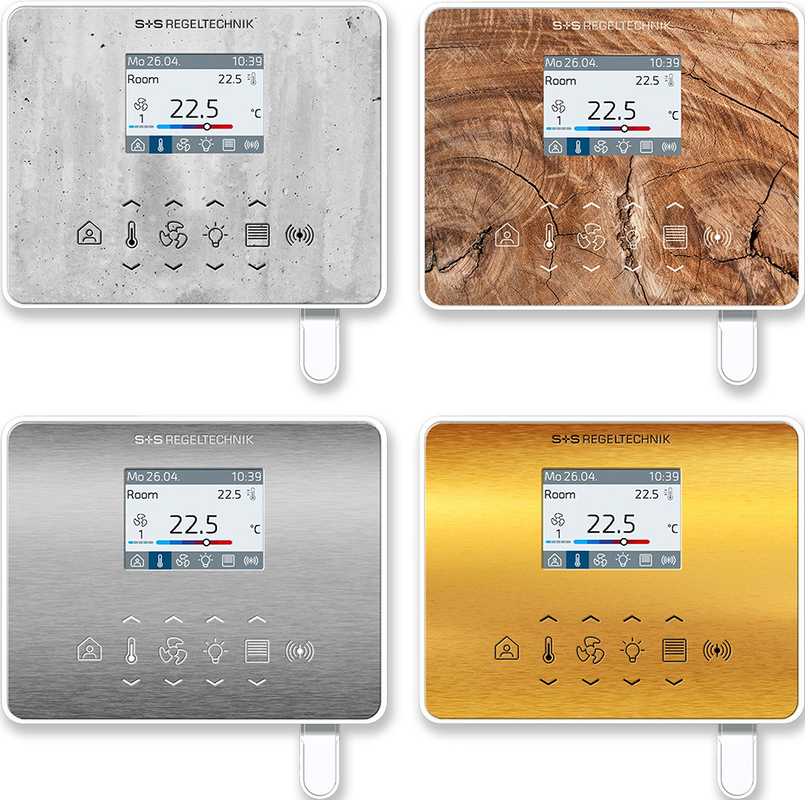

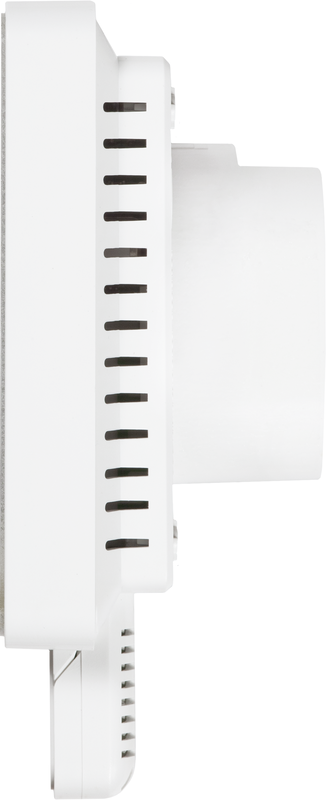

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes or surface-mounting.
