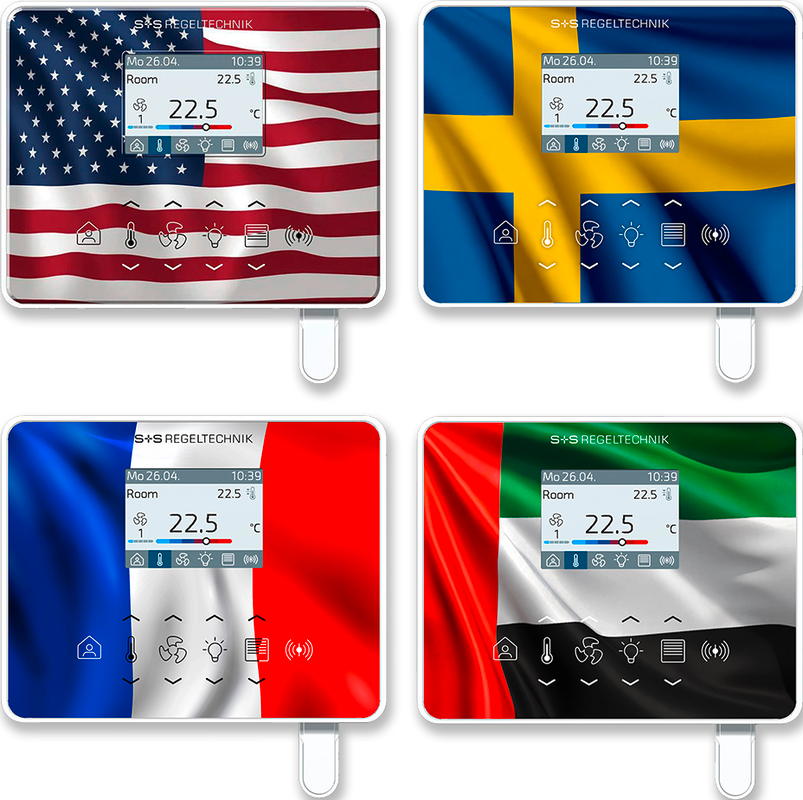

Room controllers (controllers) RYMASKON® RYM 1462C-RH-CO2-VOC-MOD-B

The room controllers of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) living, hotel and office rooms and individually regulate the heating, cooling and fan stages of the indoor space. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.
The room controllers Rymaskon® 1000 C (controller) are used to control and regulate heating fan convectors and fan convectors (fan coil). Depending on the specific model variant, the units are available with analog outputs (0 -10 V) as well as with digital/relay outputs, for controlling heating valves, cooling valves, 6-way valves, stepped fans or EC fans. Control is performed via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the changeover and monitoring of HVAC parameters on the controller at any time via the BMS. In addition, shading functions (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to flexibly and individually condition the rooms.
All unit types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in white or black. Wall mounting is done on standard flush-mounting boxes.
