WIRELESS room controller (controller) RYMASKON® RYM 1362C-RH-CO2-WMOD-L

The room controller devices of the Rymaskon 1000 series are designed to control (up to 2 climate zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-position control. The product family is distinguished by an elegant design, intuitive operation, and a wide range of combination options of the individual components.
The room controller devices Rymaskon 1000 C (controller) are used to control and regulate heating fan convectors and fan coil units (fancoil). Depending on the model variant, the devices are available with analog outputs (0 -10 V) as well as with digital/relay outputs, for controlling heating valves, cooling valves, 6-way valves, staged dampers, or EC dampers. The actuation is carried out via PI, PWM, or 2-/3-position control. With the changeover function, 2- and 4-pipe systems can be operated.

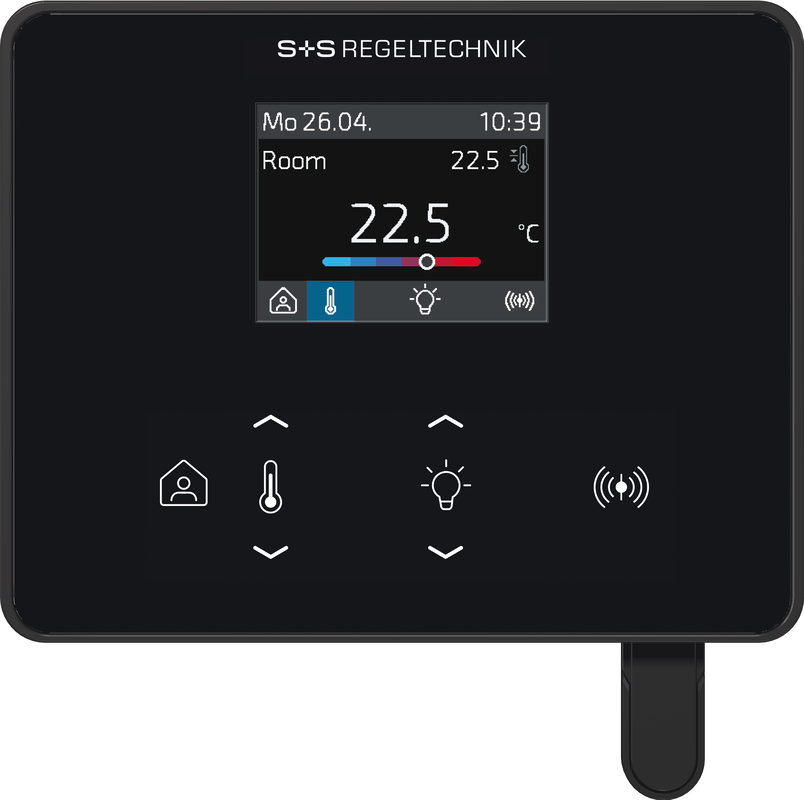

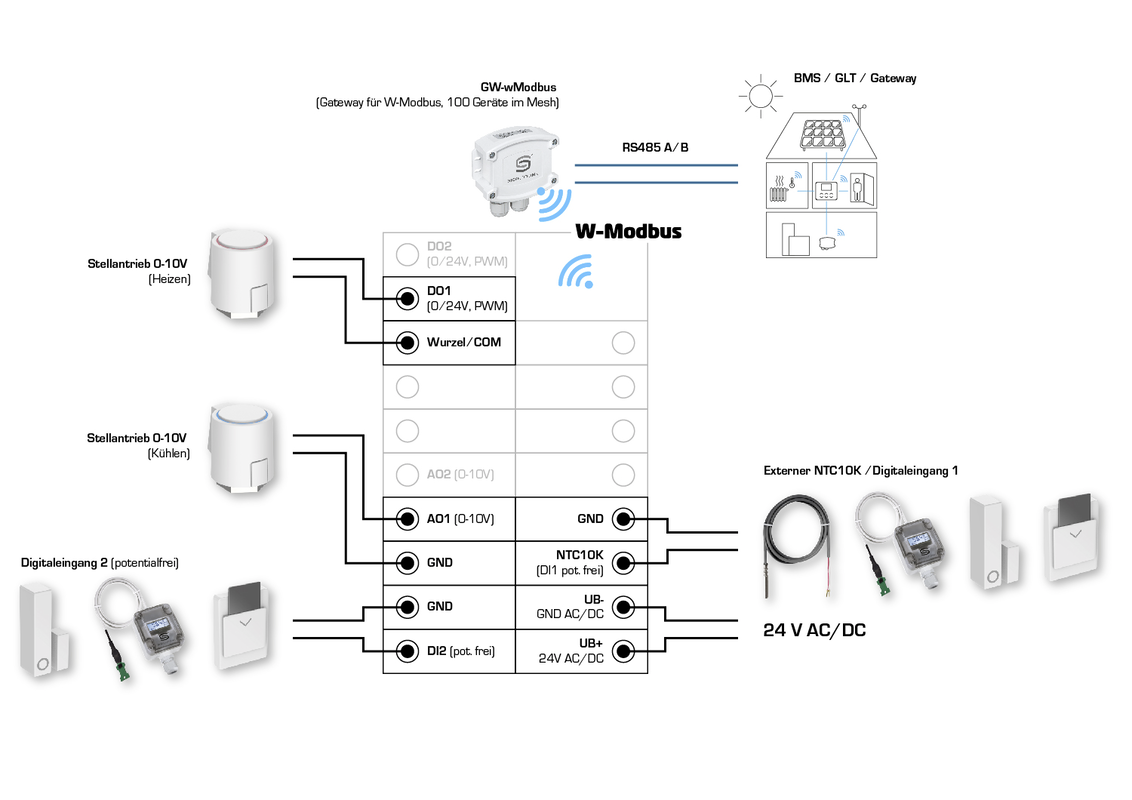

The Modbus communication interface or W-Modbus enables the continuous switching and monitoring of climate parameters on the controller via the BMS. In addition, the functions solar shading (roll-down shutters, venetian blinds) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input is provided for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This makes it possible, for example, to connect a window contact or a condensation monitor. This means that all options are available to climate-control the rooms flexibly and individually.

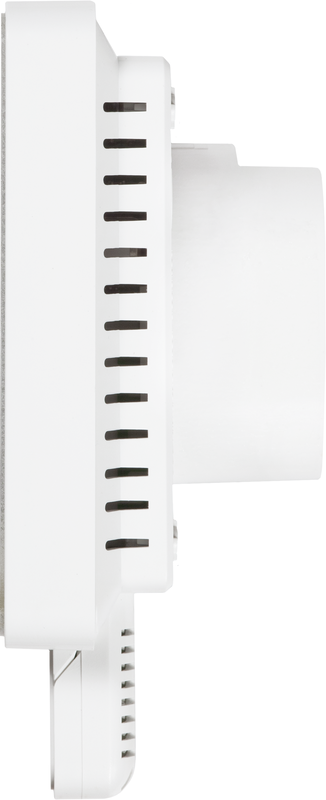

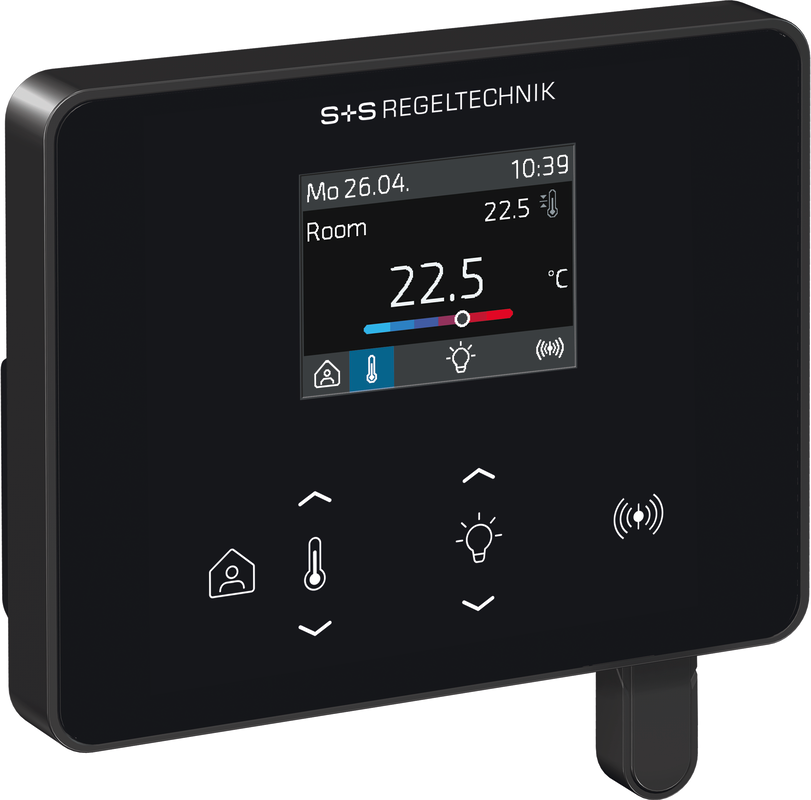

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes.
