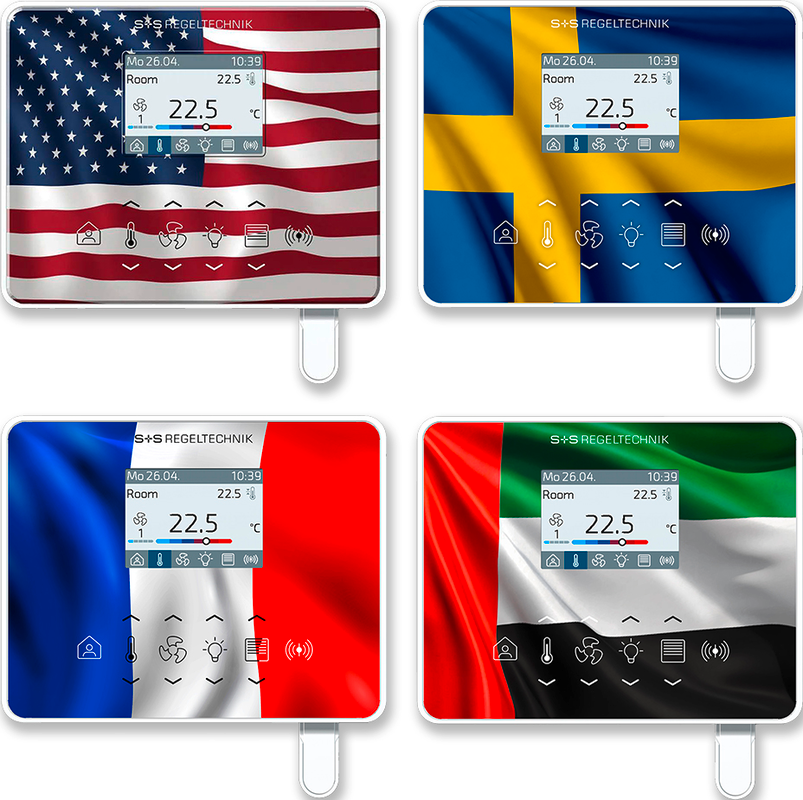

Room controller (controller) RYMASKON® RYM 1362C-RH-CO2-VOC-MOD-BL

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms, and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as standalone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation and the diverse combination possibilities of the individual components.
The room control devices Rymaskon® 1000 C (controller) are used for actuation and control of heating fan convectors and fan coil units (fan coil). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital/relay outputs, for driving heating valves, cooling valves, 6-way valves, staged air dampers or EC fans. The actuation is performed via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the continuous change and monitoring of the HVAC parameters on the controller via the BMS. In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided via a 2" TFT display, and operation is via capacitive keys (Touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available optionally. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This allows, for example, a window contact or a condensation switch to be connected. As a result, all options are available to flexibly and individually climate-control rooms.
All device types are housed in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in white or black. Wall mounting is on standard flush-mount back boxes.
