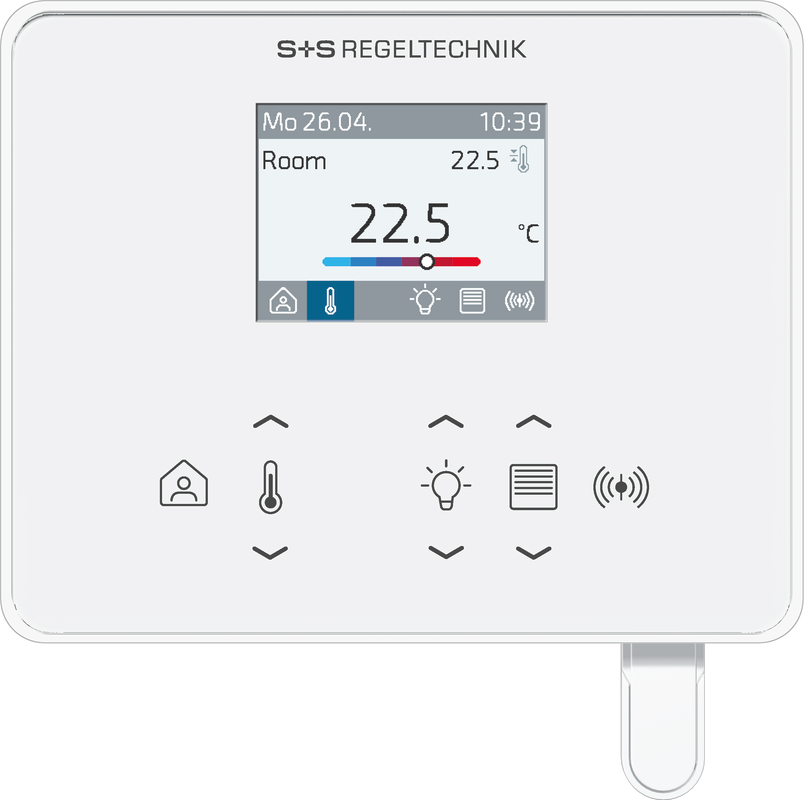

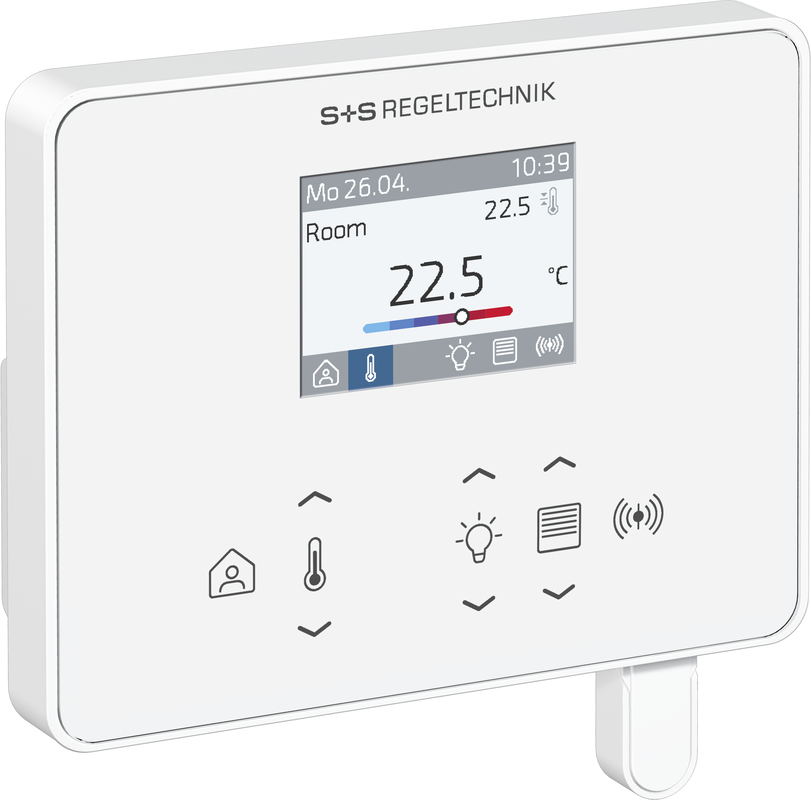

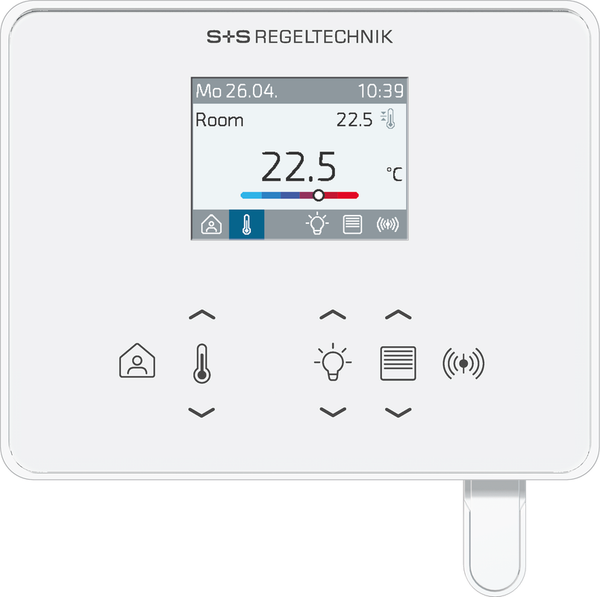

WIRELESS room controller (controller) RYMASKON® RYM 1361C-RH-CO2-WMOD-BL

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms, and individually control the heating, cooling, and fan stages in the interior. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM, or 2-/3-position control. The product family stands out for its refined design, intuitive operation, and the diverse combination options of the individual components.

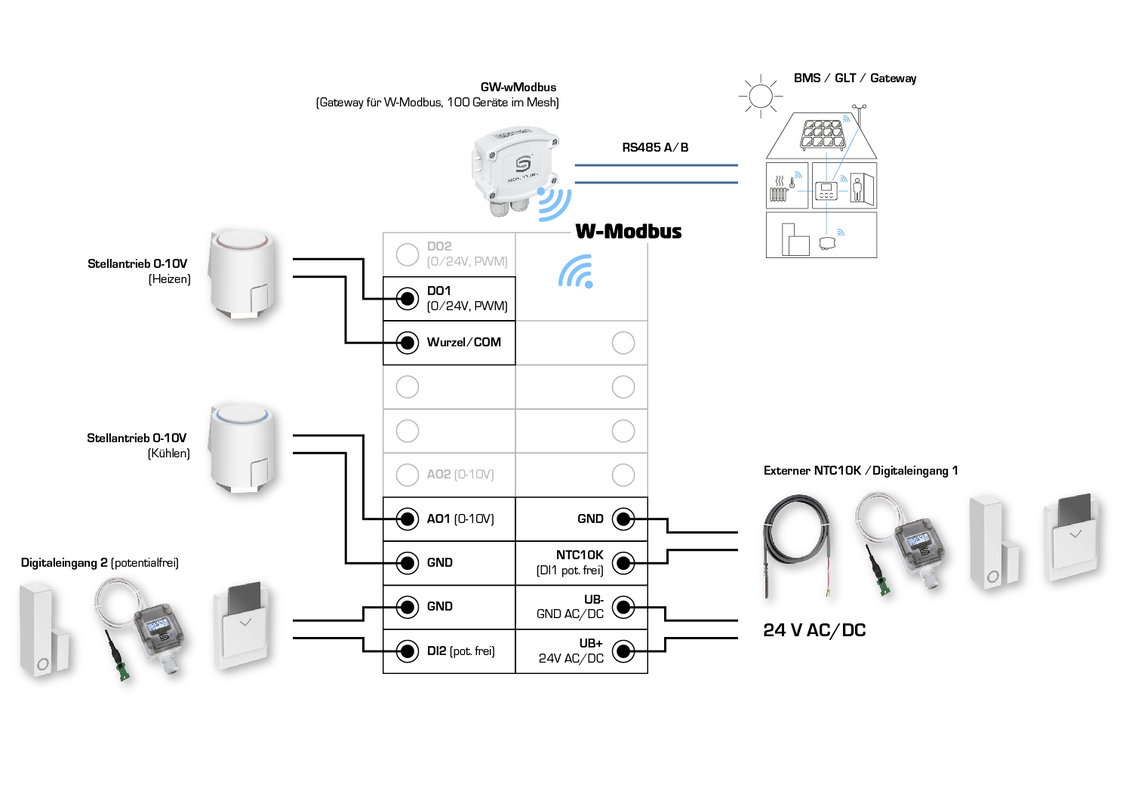

The Rymaskon® 1000 C room control devices (controllers) are used to actuate and control heating fan convectors and fan coil units (Fancoil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital/relay outputs for controlling heating valves, cooling valves, 6-way valves, stepped fans, or EC fans. Control is carried out via PI, PWM, or 2-/3-position control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables, at any time, the changing and monitoring of climate parameters on the controller via the BMS. In addition, the functions solar shading (roller shutters, venetian blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided by a 2" TFT display, and operation is via capacitive buttons (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available optionally. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This means, for example, a window contact or a condensation monitor can be connected. This provides all options to climate-control rooms flexibly and individually.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is carried out on standard flush-mounted wall boxes.
