WIRELESS room controller (controller) RYMASKON® RYM 1322C-RH-CO2-WMOD-L

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the indoor area. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation and the many combination options of the individual components.
The room control devices Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan convectors and blower fan convectors (fan coil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, staged fans or EC fans. The control is performed via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the continuous change and monitoring of climate parameters on the controller via the BMS. In addition, functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided via a 2" TFT display; operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. For example, a window contact or a condensate alarm can be connected. This ensures that all options are available to flexibly and individually climate-control the rooms.

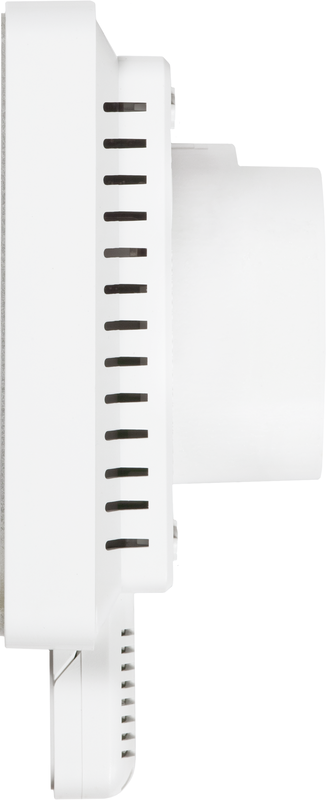

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounted back boxes.
