Room controller (Controller) RYMASKON® RYM 1322C-RH-CO2-VOC-MOD-B

The room controller devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms and individually control the indoor heating, cooling, and fan stages. The controller variants can be operated as standalone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family stands out for its refined design, intuitive operation, and the many configuration options of the individual components.
The room controller devices Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan convectors and blower fan convectors (fan coil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital/relay outputs for controlling heating valves, cooling valves, 6-way valves, step-controlled fans, or EC fans. Control is performed via PI, PWM, or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the continuous change and monitoring of climate parameters on the controller via the BMS. In addition, the functions of solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled over the bus. The optical display is provided via a 2" TFT display; operation is via capacitive buttons (touchkeys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to climate-control rooms flexibly and individually.

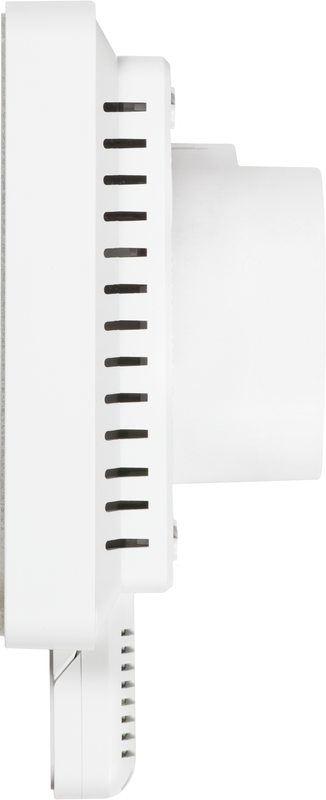

All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting back boxes.
