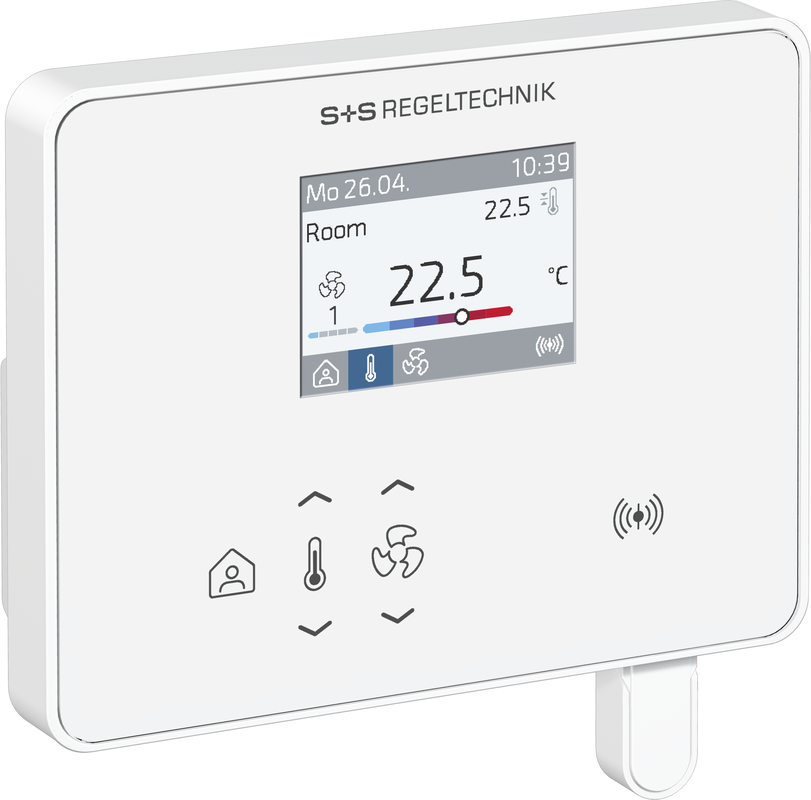

WIRELESS room controller (controller) RYMASKON® RYM 1441C-RH-CO2-VOC-WMOD

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms, and individually regulate the heating, cooling and fan stages of the indoor unit. The controller variants can be operated as standalone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.
The room control devices Rymaskon® 1000 C (controllers) are used for driving and control of heating fan convectors and cooling fan convectors (fan coil). Depending on the specific type variant, the devices are available with analog outputs (0 -10 V) and with digital-/relay outputs, for controlling heating valves, cooling valves, 6-way valves, staged fans or EC fans. Control is performed via PI, PWM or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.

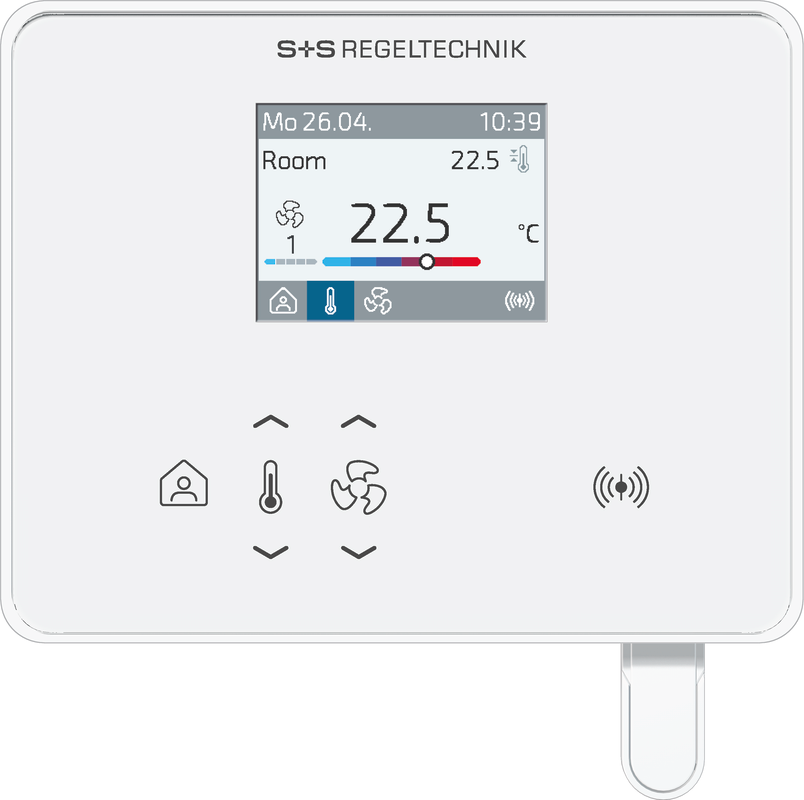

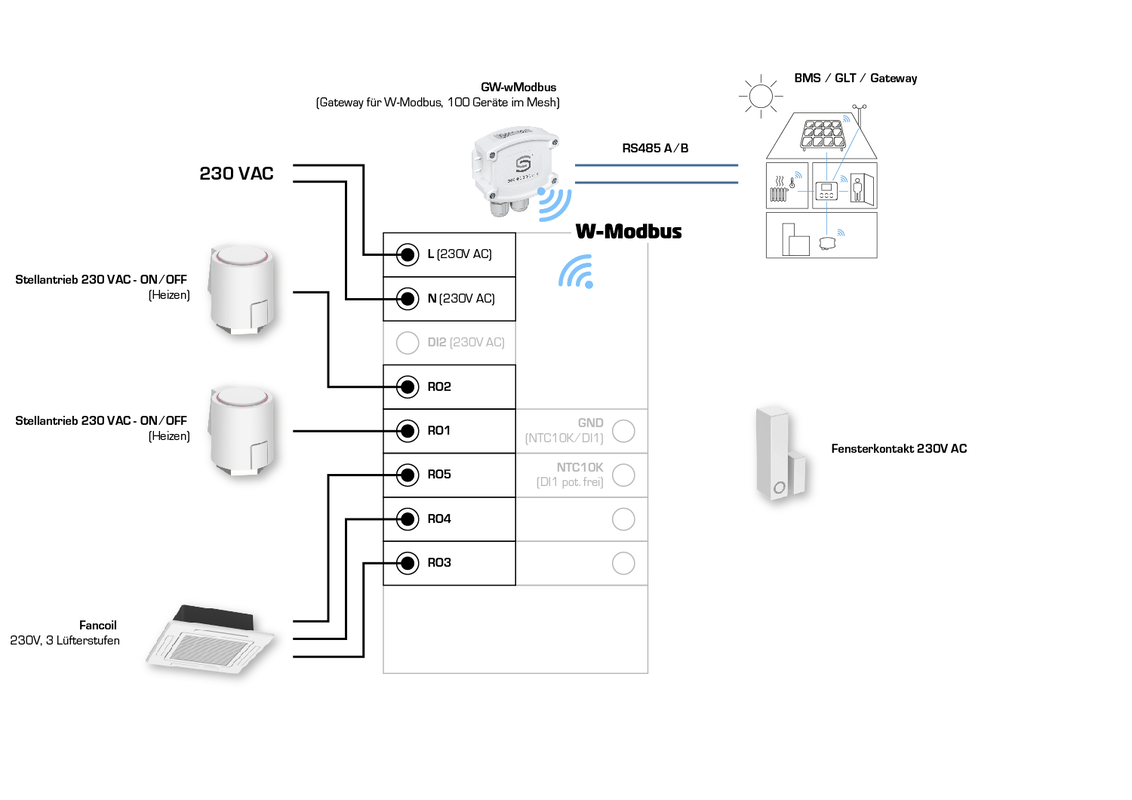

The Modbus communication interface or W-Modbus enables any time the configuration and monitoring of HVAC parameters on the controller via the BMS. In addition, the functions sun protection (roller shutters, blinds) or lighting (with dimming function) can be controlled over the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input is available for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This allows, for example, a window contact or a condensation monitor to be connected. As a result, all options are available to flexibly and individually climate-control the rooms.

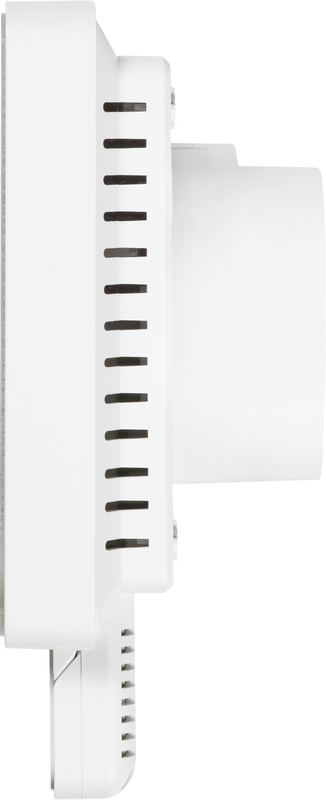

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes.
