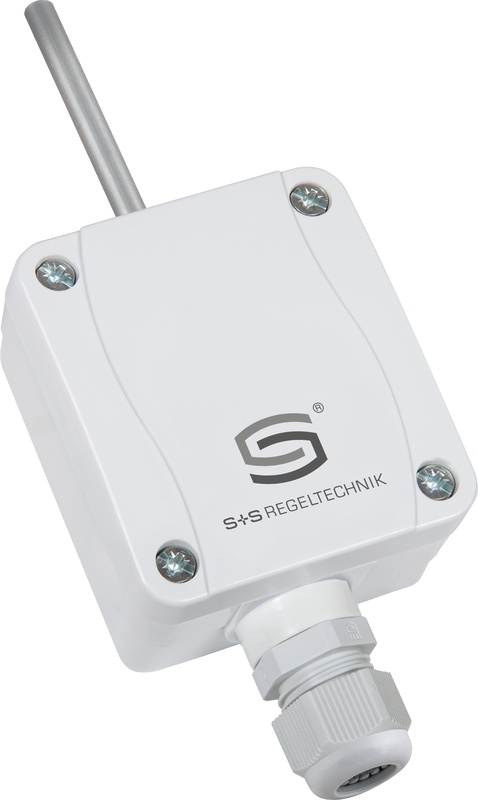

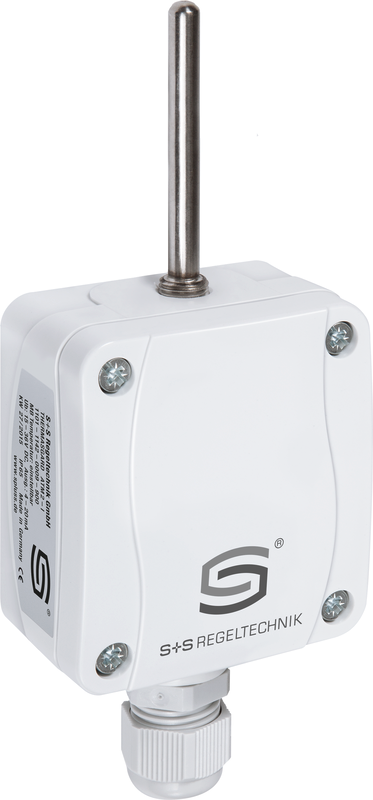

Outdoor temperature / humid room temperature transducer THERMASGARD® ATM2-I
THERMASGARD® ATM2-I
SKU 1101-1142-0009-900
EAN 4 251325 600642
Product group: WG01
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
110,92 €
Regular price
Sale price
110,92 €
Consegna in 2 giorni in Italia
Garanzia di 5 anni
Richiedi uno sconto quantità
Product description
- – 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
- typically ± 0.2 K at +25 °C
- 4...20 mA
- Cable gland
- IP65
Calibratable outdoor temperature transmitter THERMASGARD® ATM 2 with eight switchable measuring ranges, external sensor, continuous output, housing made of impact-resistant plastic with quick-release screws, optionally with/without display, with cable gland or M12 plug connector in accordance with DIN EN 61076-2-101.
It is used to record the outdoor temperature, the temperature in humid areas, e.g. for mounting on external walls, in cold stores and greenhouses, in industrial areas and in agriculture. In outdoor areas, the temperature transmitter is preferably installed on the north side or in a protected location. In direct sunlight, the sun and ball protection WS 01 or WS 04 (accessories) or the device variant with mounted sun protection SS 02 (on request) must be used.
The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
It is used to record the outdoor temperature, the temperature in humid areas, e.g. for mounting on external walls, in cold stores and greenhouses, in industrial areas and in agriculture. In outdoor areas, the temperature transmitter is preferably installed on the north side or in a protected location. In direct sunlight, the sun and ball protection WS 01 or WS 04 (accessories) or the device variant with mounted sun protection SS 02 (on request) must be used.
The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measurement | Temperature |
| Power supply | 15...36 V DC depending on the load, residual ripple is stabilized at ± 0.3 V |
| Display | No |
| Protection rating | IP65 |
| Output variant | Cable gland |
| Measuring range | – 20...+ 150 °C / – 50... + 50 °C / – 20...+ 80 °C / – 30...+ 60 °C / 0...+ 40 °C / 0...+ 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C |
| Features | none |
| Output | 4...20 mA |
