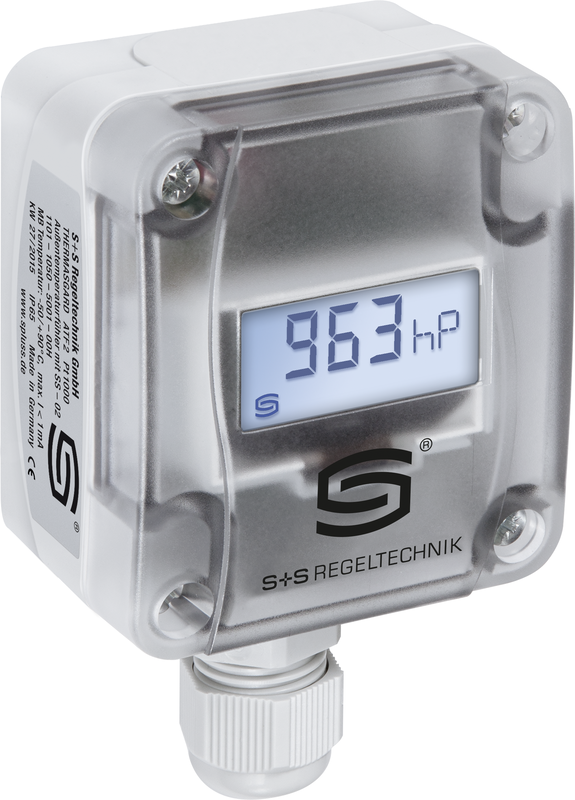

Barometer / Measuring Transmitter for Atmospheric Air Pressure PREMASGARD® ALD LCD
PREMASGARD® ALD LCD
SKU 1301-1157-2130-200
EAN 4 251325 623580
Product group: WG01
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
218,23 €
Regular price
Sale price
218,23 €
Consegna in 2 giorni in Italia
Garanzia di 5 anni
Richiedi uno sconto quantità
Product description
- 900...1100 hPa
- typical ± 0.4 kPa
- active (0-10V / 4-20mA)
- IP65 / IP67
Calibratable PREMASGARD® ALD barometer with active output (U/I switchable) and 4 measuring ranges (max. 600...1100 hPa, switchable), in a compact plastic housing with quick-release screws, optionally with/without display.
The pressure transmitter is used to measure the atmospheric air pressure in clean air (non-condensing) or other non-aggressive, non-flammable gases. Applications include ventilation and air conditioning technology, weather measuring stations and air pressure-dependent control systems.
The piezoresistive measuring element is temperature-compensated and guarantees high reliability and accuracy. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
The pressure transmitter is used to measure the atmospheric air pressure in clean air (non-condensing) or other non-aggressive, non-flammable gases. Applications include ventilation and air conditioning technology, weather measuring stations and air pressure-dependent control systems.
The piezoresistive measuring element is temperature-compensated and guarantees high reliability and accuracy. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measured values | Pressure, atmospheric pressure |
| Power supply | 24 V AC/DC (± 10%) |
| Output | 0–10 V, 4..20 mA |
| Display | Yes |
| Measuring range | 600...1100 / 700...1100 / 800...1100 / 900...1100 hPa |
| Output | switchable 0–10 V / 4...20 mA (via DIP switch) |
